Figure 5
From: An evaluation of the SureID 23comp Human Identification Kit for kinship testing

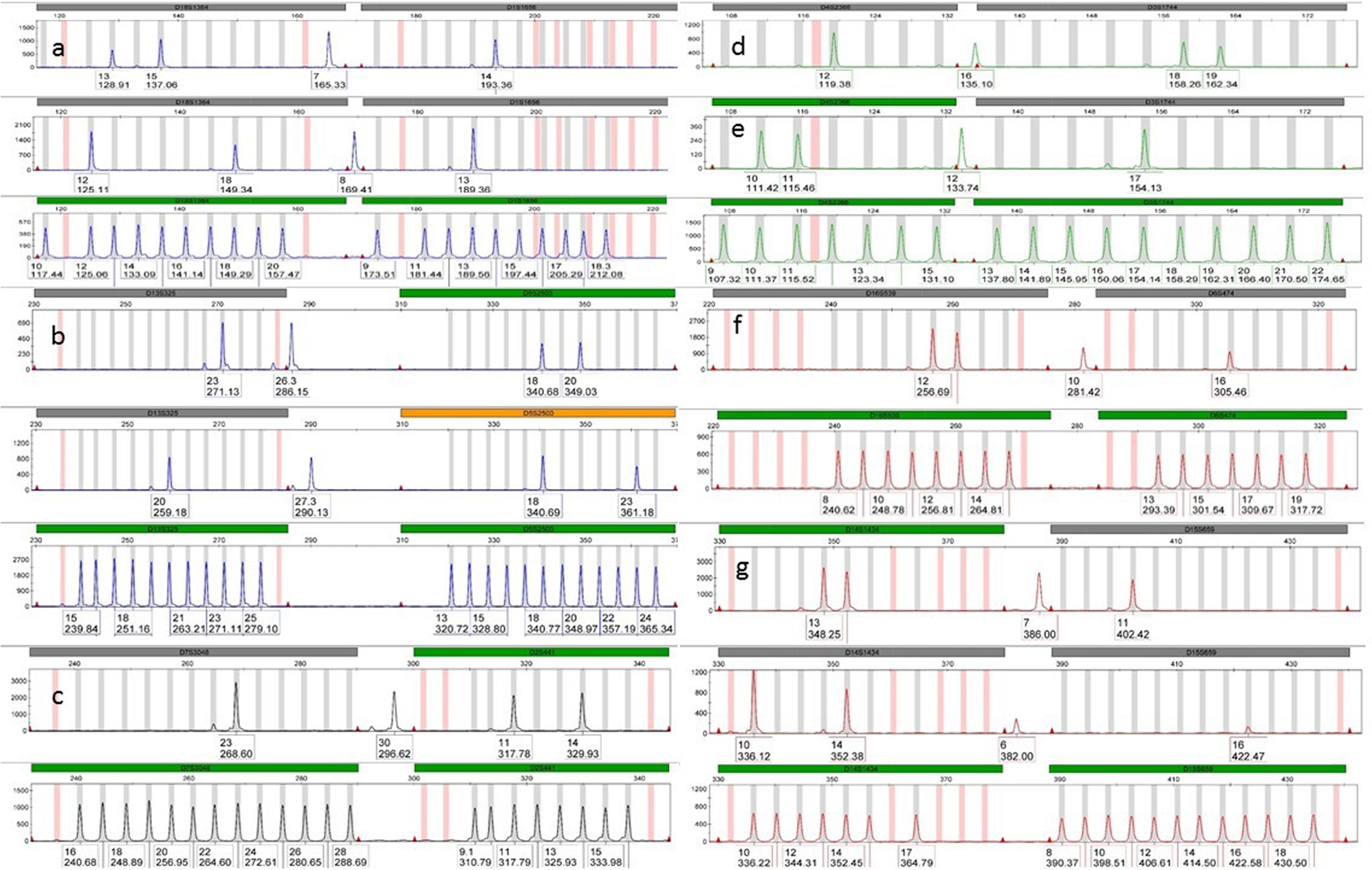

Alleles outside the allelic ladder windows of the SureID 23comp Kit. This figure shows ten alleles observed in the population of Saudi Arabia that are not represented in the allelic ladder and were situated outside the designated widow of their loci: (a) Alleles 7 and 8 at D1S1656; (b) Alleles 26.3 and 27.3 at D13S325; (c) Allele 30 at D7S3048; (d) Allele 16 at D4S2366; (e) Allele 12 at D3S1744; (f) Allele 10 at D6S474; (g) Alleles 6 and 7 at D15S659. Allele 7 at D1S1656 (a) was situated under the designated area of D18S1364 locus.
