Figure 4

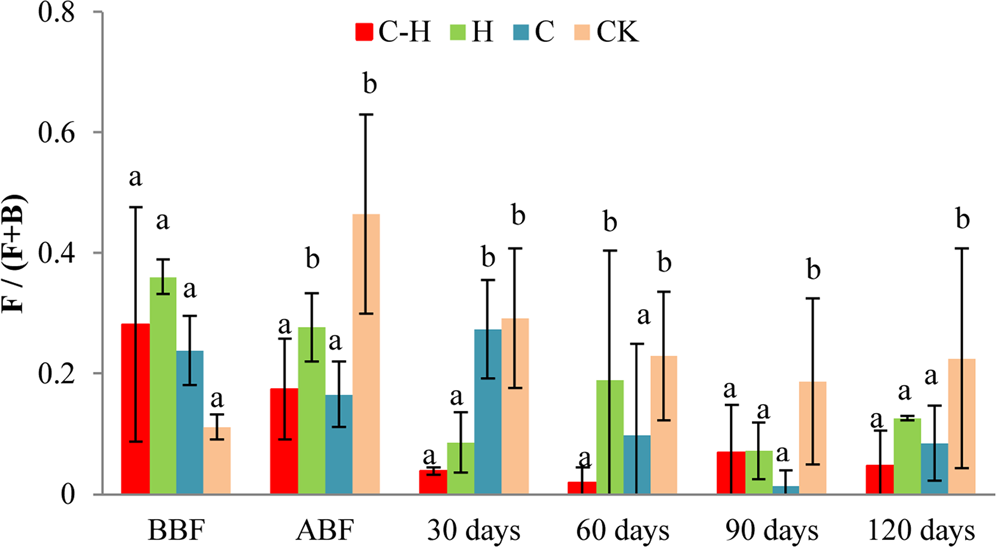

Effect of the combination of HDZ-9-47 and biofumigation on the ratio of fungivore to fungivore plus bacterivore, F/(F + B). C-H: combination of Streptomyces rubrogriseus HDZ-9-47 and biofumigation with cabbage. H: application of HDZ-9-47 alone. C: soil biofumigation with cabbage. BBF and ABF: before- and after biofumigation, respectively. Error bars represent standard deviation. The different letters on each bar within same sampling time represent significant differences at the 0.05 level based on Tukey’s multiple comparison test.
