Figure 2
From: Identification of Circulating Serum Multi-MicroRNA Signatures in Human DLBCL Models

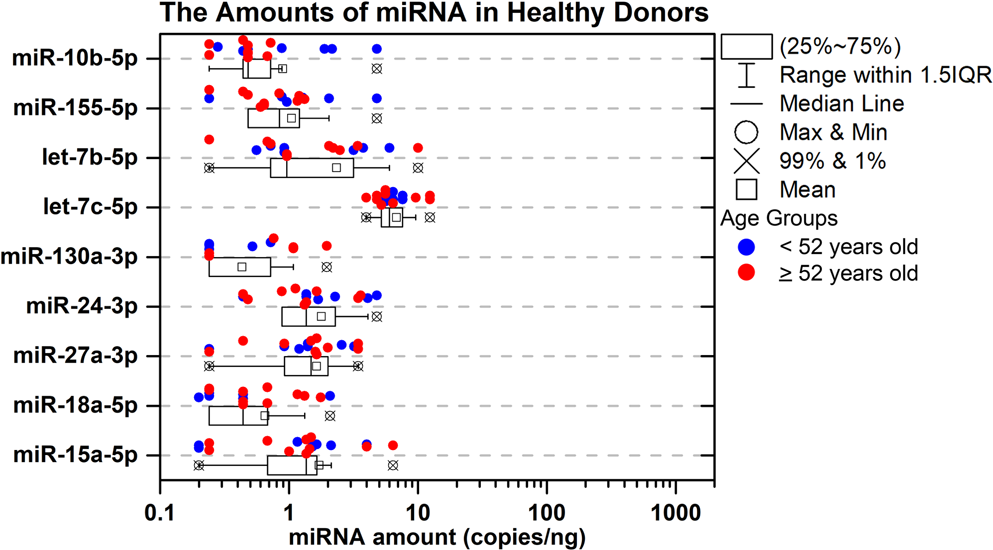

The amount of miRNA in healthy subjects. A boxplot of the amount of miRNA (copies/ng) quantified from the serum of n = 17 healthy subjects. The whiskers show the range of the outliers, with maximum and minimum values as “o” and the 1st and 99th percentile outliers as “X”, the mean values are shown as “□”, and the median line is shown as “—”. The data points for each sample is shown on the top of the boxplots and are color coded for <52 years old as blue and ≥52 years old as red.
