Figure 5

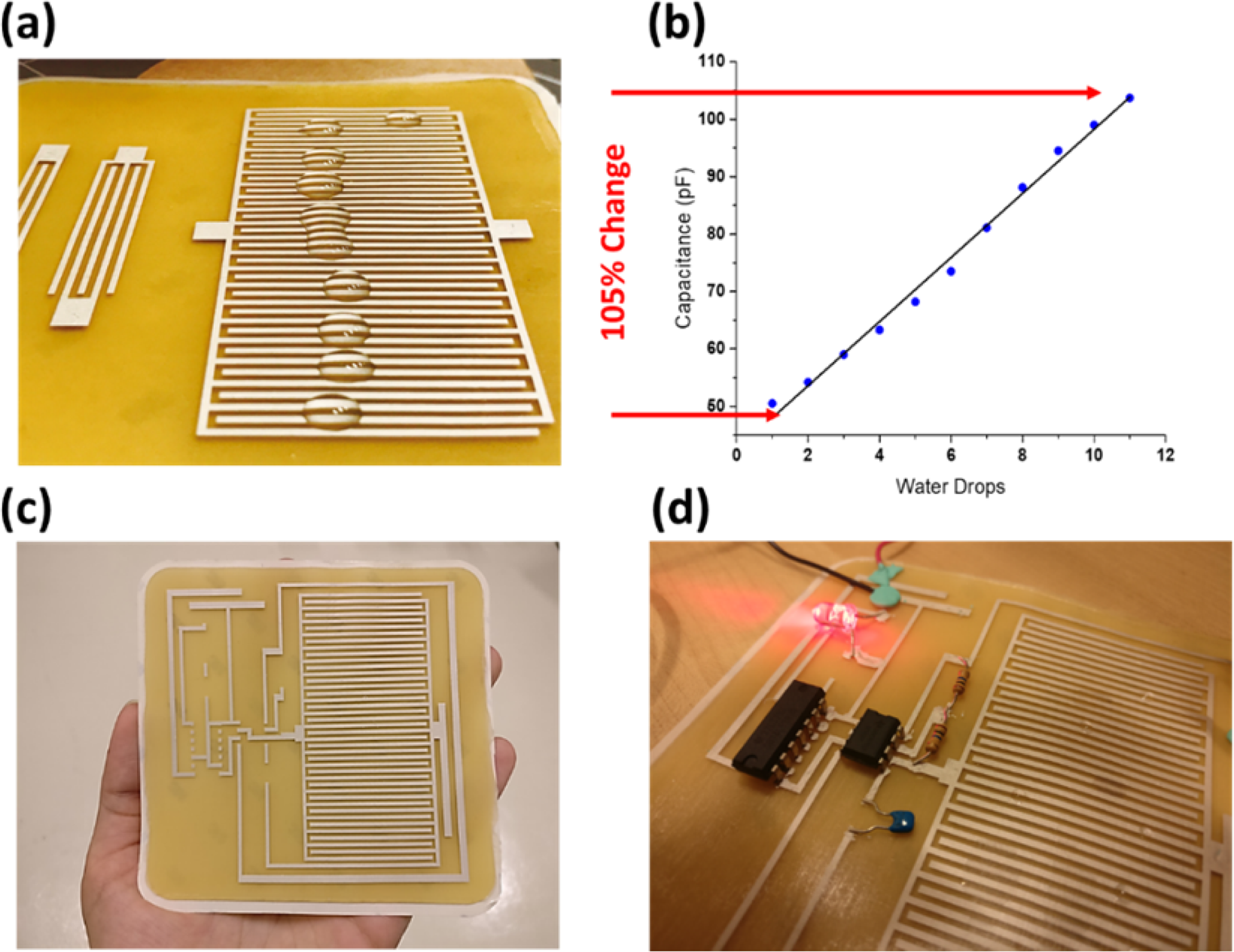

(a) Water drops on top of the 43 fingers IDC (b)Capacitance change during humidity test on IDC of N = 43 (c) Screen-printed IDC, traces and pinholes for the smart bandage circuitry (d) Smart bandage while in operation.
