Figure 3
From: Adsorption of an anionic dye (Congo red) from aqueous solutions by pine bark

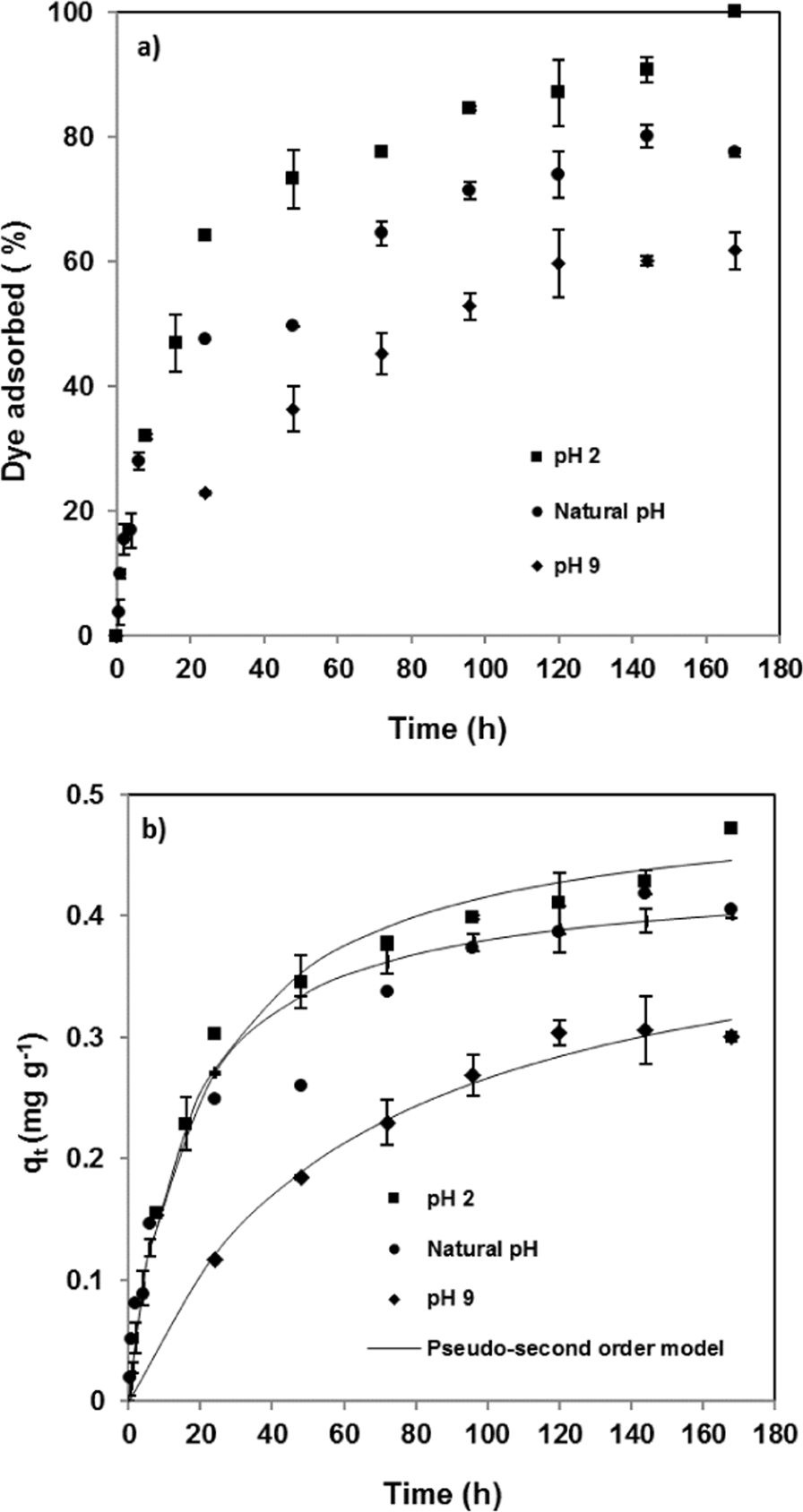

Effect of initial pH on (a) removal efficiency and (b) adsorption capacity. Experimental data and fitting to pseudo-second order kinetic model (temperature = 25 °C; initial dye concentration = 5 mg/L; adsorbent dose = 10 g L−1)
