Figure 3

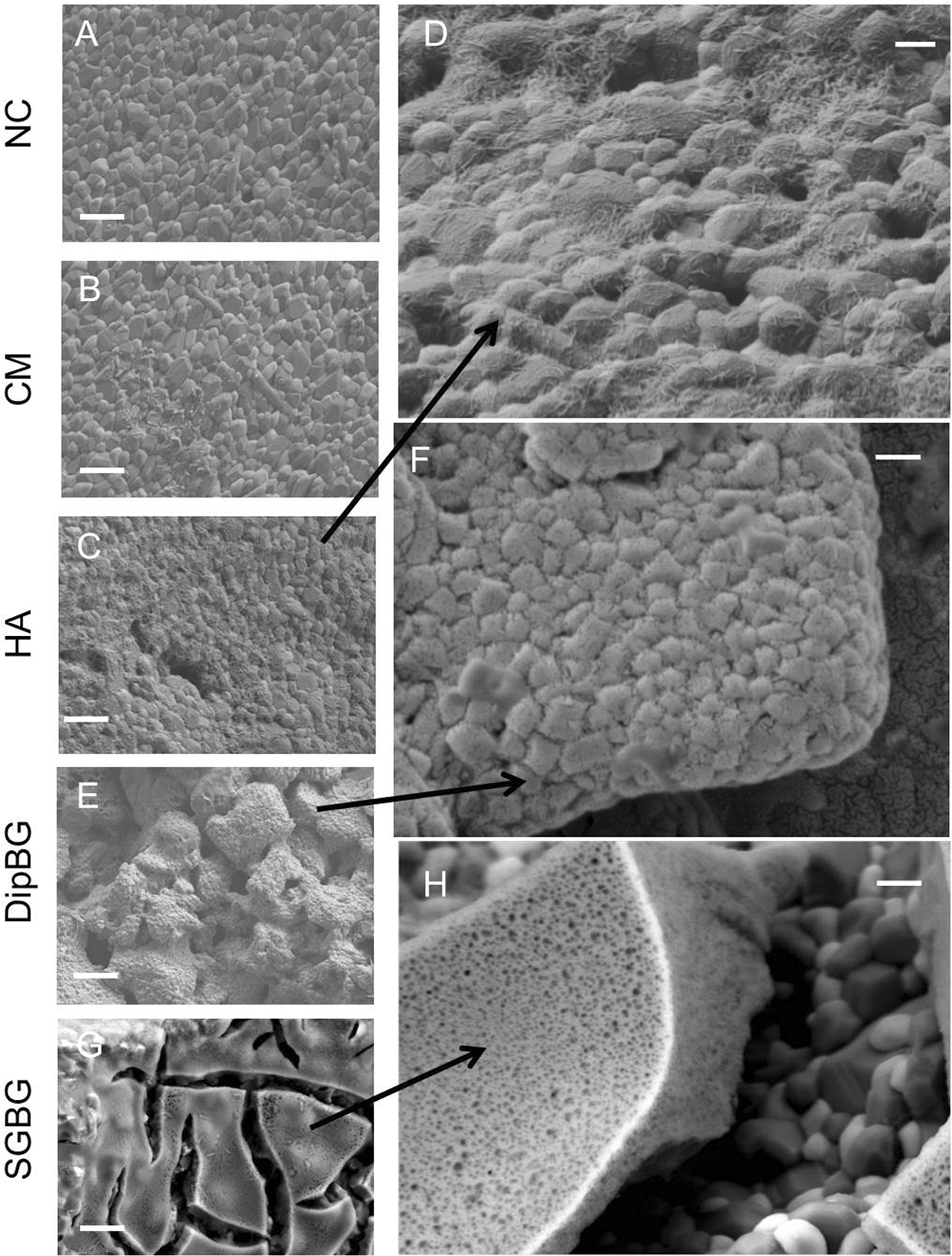

Bioactive surface coating in higher magnifications using SEM. Coating of textured implants modified the textured surface depending on the coating thickness (A–H; A–C, E–G; scale bar: 2 µm, x20.000; D,F,G; scale bar: 500 nm, x40.000).
