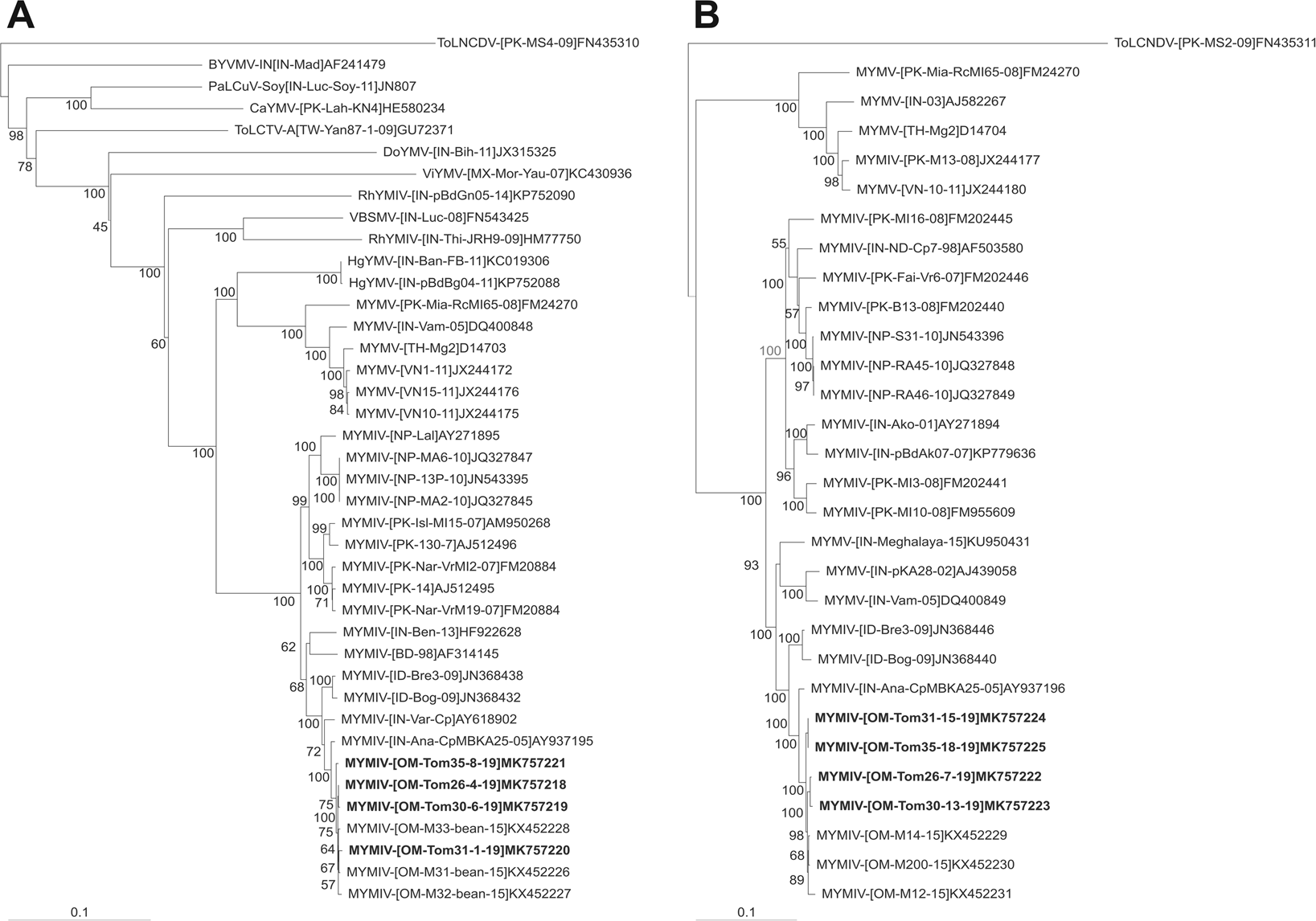

Figure 3
Phylogenetic dendrograms based upon alignments of the complete nucleotide sequences of the DNA A sequences of Mungbean yellow mosaic India virus (MYMIV) isolated from tomato with the genome or DNA A sequences of selected begomoviruses from the databases (A) and the DNA B sequences of MYMIV isolated from tomato with selected DNA B components of begomoviruses available in the databases (B). Vertical branches are arbitrary; horizontal branches are proportional to calculated mutation distance. Values at nodes indicate percentage boot strap values (1000 replicates). Begomovirus acronyms used are Bhendi yellow vein mosaic virus (BYVMV), Catharanthus yellow mosaic virus (CaYMV), Dolichos yellow mosaic virus (DoYMV), Horsegram yellow mosaic virus (HgYMV), Mungbean yellow mosaic virus (MYMV), Papaya leaf curl virus (PaLCuV), Rhynchosia yellow mosaic India virus (RhYMIV), Rhynchosia yellow mosaic virus (RhYMV), Tomato leaf curl Taiwan virus (ToLCTV), Velvet bean severe mosaic virus (VBSMV) and Vigna yellow mosaic virus (ViYMV). The trees were arbitrarily rooted on the DNA A sequence of Tomato leaf curl New Delhi virus (ToLCNDV-[PK:MS4:09]FN435310) for the DNA A tree and DNA B of ToLCNDV-[PK:MS2:09]FN435311for the DNA B tree as outgroup. The database accession numbers are indicated in each case. The sequences originating from tomato are indicated by bold text in each case.
