Figure 3

From: Activated Carbons from Hydrochars Prepared in Milk

Figure 3

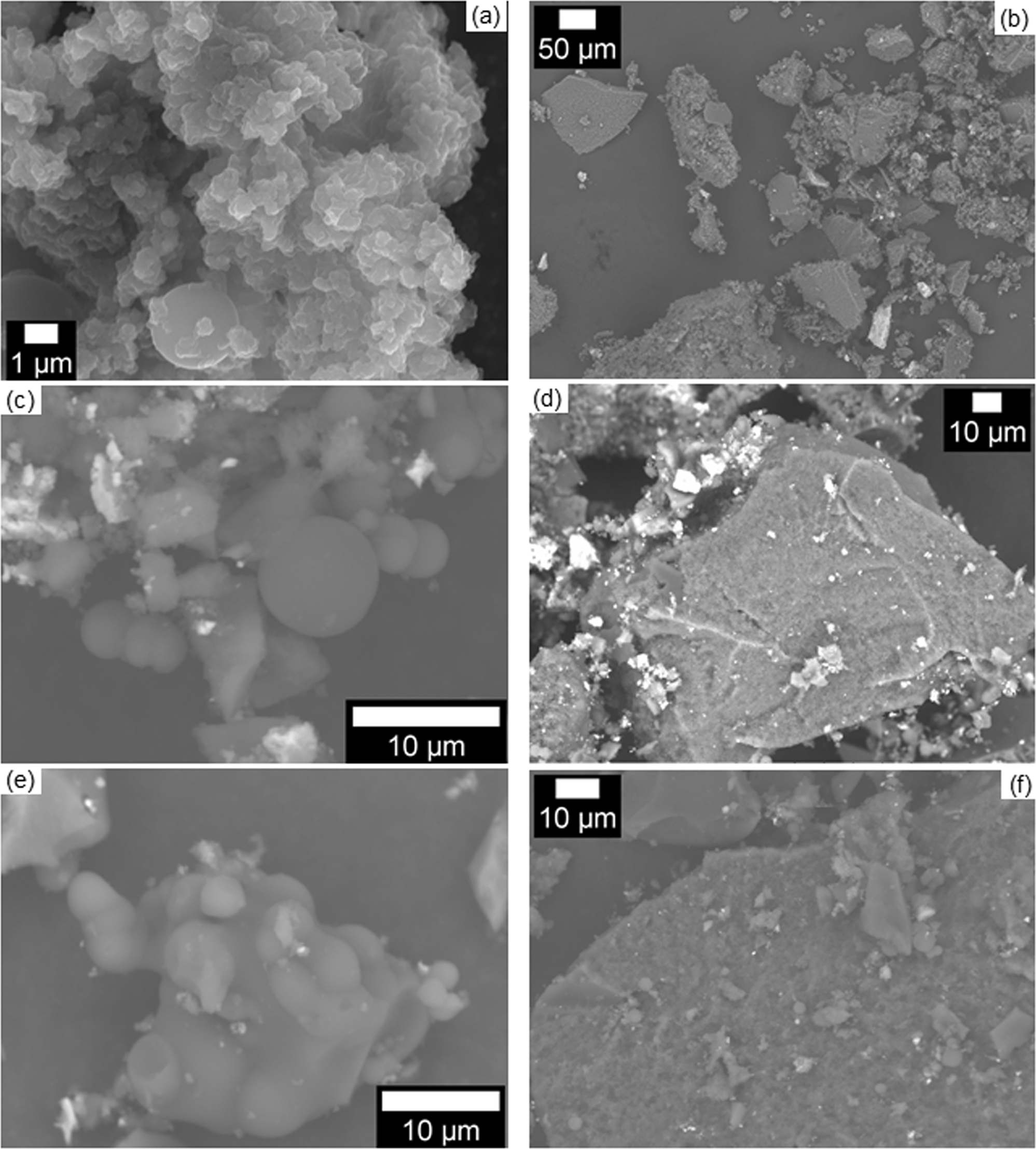

Scanning electron microscope images of activated carbons (ACs) generated from a hydrochar formed in milk without solid precursors. For each sample, a smaller particle is shown on the left, and a larger one on the right. (a,b) AC-M-4; (c,d) AC-M-10; (e,f) AC-M-N2CO2-20.
