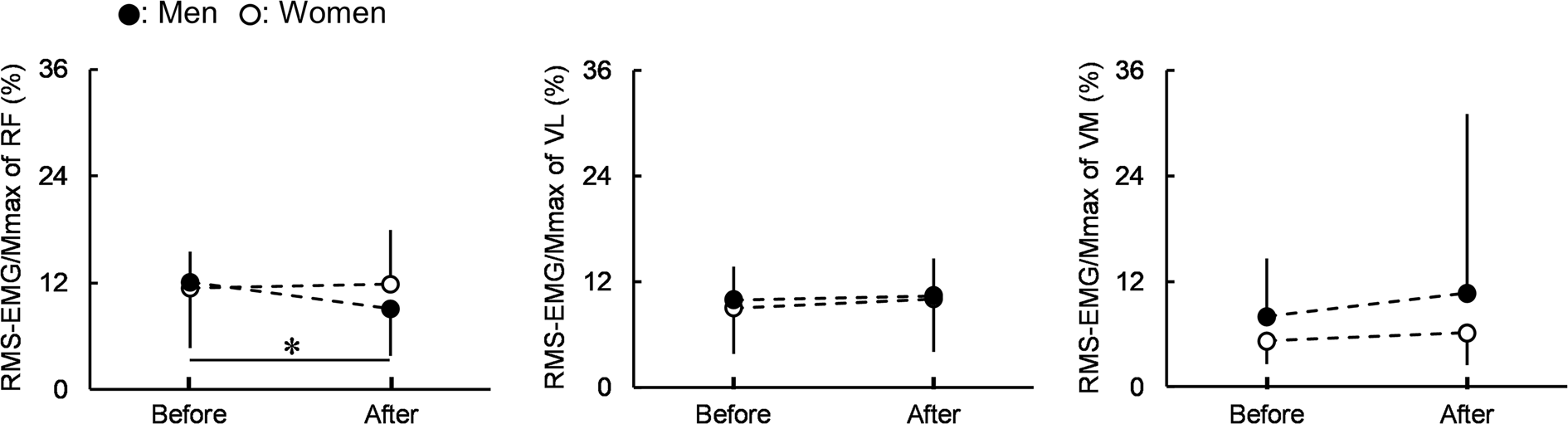

Figure 4
From: Sex difference in fatigability of knee extensor muscles during sustained low-level contractions
Root mean square values of surface electromyography signals normalized by peak-to-peak compound muscle action potential amplitudes (RMS-EMG/Mmax) of the rectus femoris and lateral and medial vastus muscles (RF, VL, and VM) for men and women before and after the fatiguing task. Regarding RF, the time × sex interaction was significant. *Indicates a significant difference before and after the fatiguing task for men. Regarding VL and VM, there were no significant main effects of time or sex without a significant time × sex interaction. Data are presented as means ± standard deviation.
