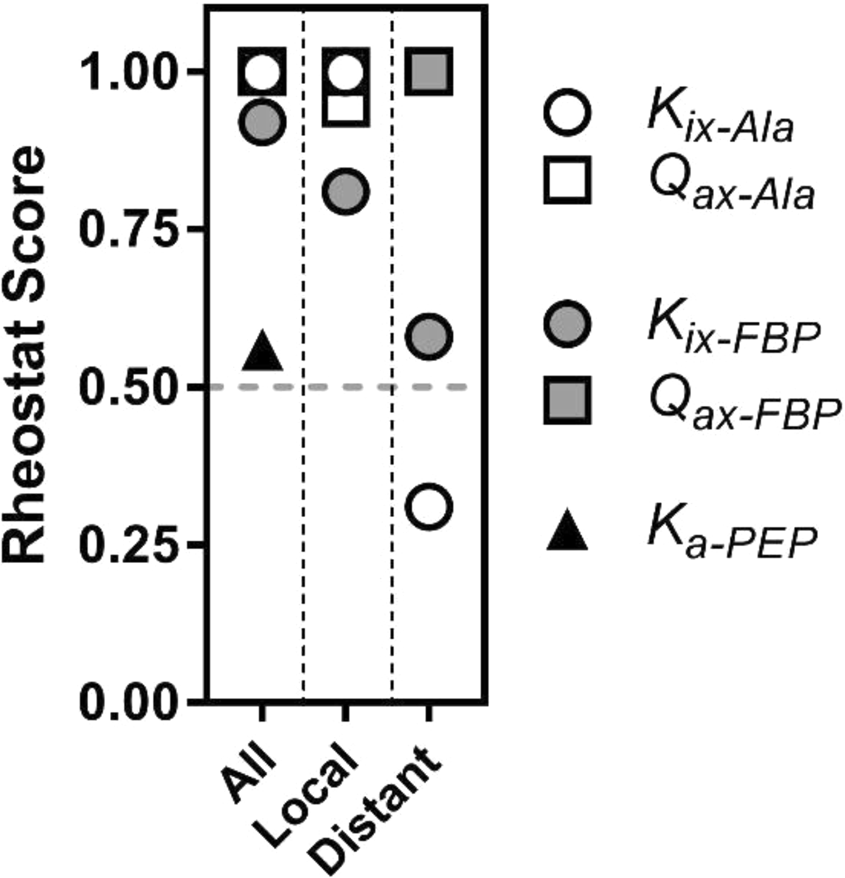

Figure 6

Rheostat scores for compilations of substitutional outcomes from multiple positions. When compilations of data are used to calculate a rheostat score, full tunability is reflected by a rheostat score that approaches 1. Results from both the current work and the previous study³ are summarized here: Compilation rheostat scores were calculated for the “local” dataset, the “distant” dataset, and the combination of both. When the symbol for Q_ax-Ala is not obvious in the “All” and “Distant” columns, it is behind the symbol for Q_ax-FBP. Scores for these parameters are reported in Supplemental Table 4.
