Figure 4

From: Gold-Hybridized Zinc Oxide Nanorods as Real-Time Low-Cost NanoBiosensors for Detection of virulent DNA signature of HPV-16 in Cervical Carcinoma

Figure 4

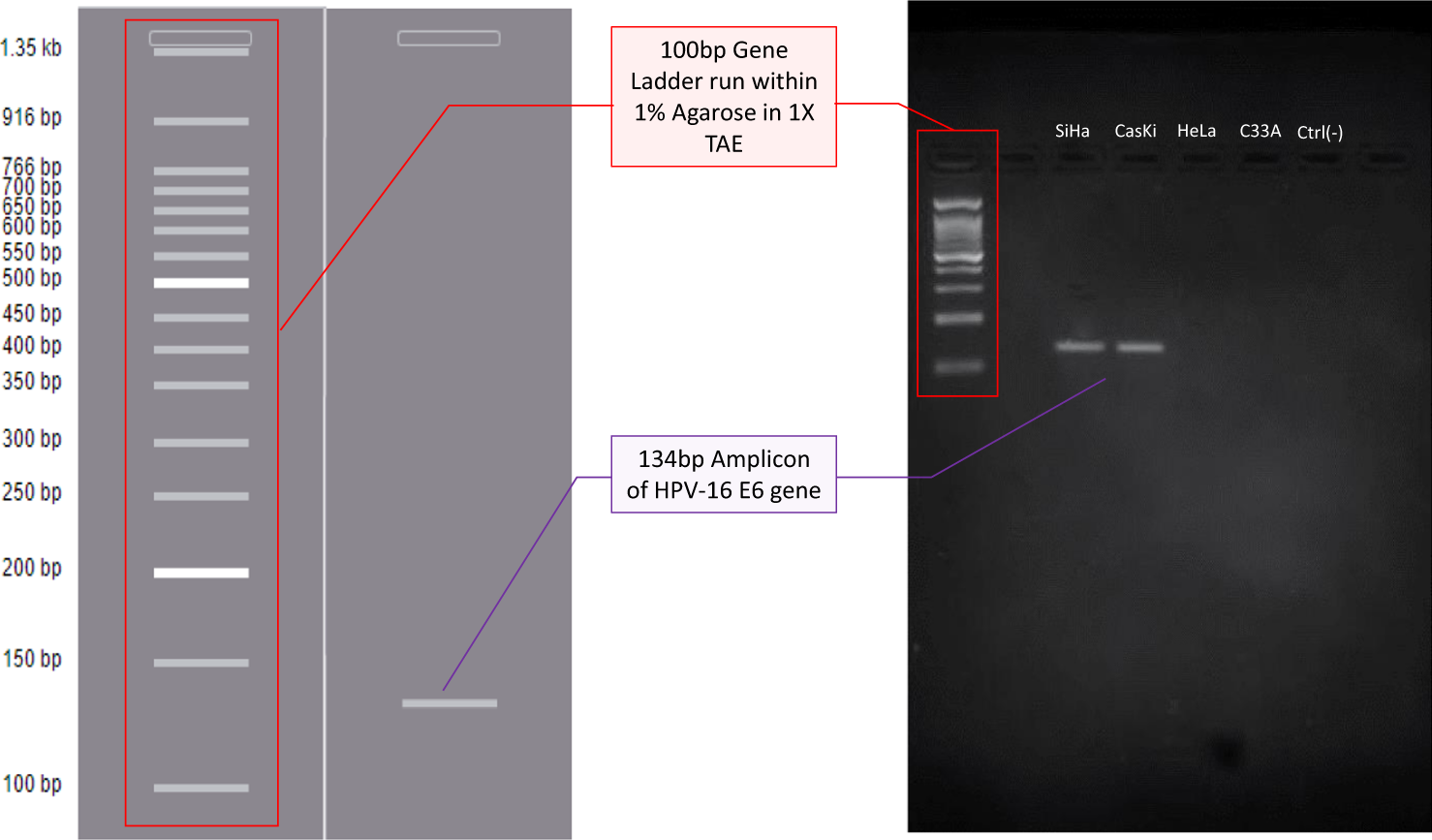

Diagram showing the comparison of virtual and experimental electrophoretic gel run of PCR products from E6 gene amplification. The left of the diagram shows virtual gel-run performed in GenomeCompiler software. The right of the diagram shows real gel image (full-length gel) run using 4 cervical cancer cell samples; SiHa, CasKi, HeLa, C33A and negative control lane on same gel.
