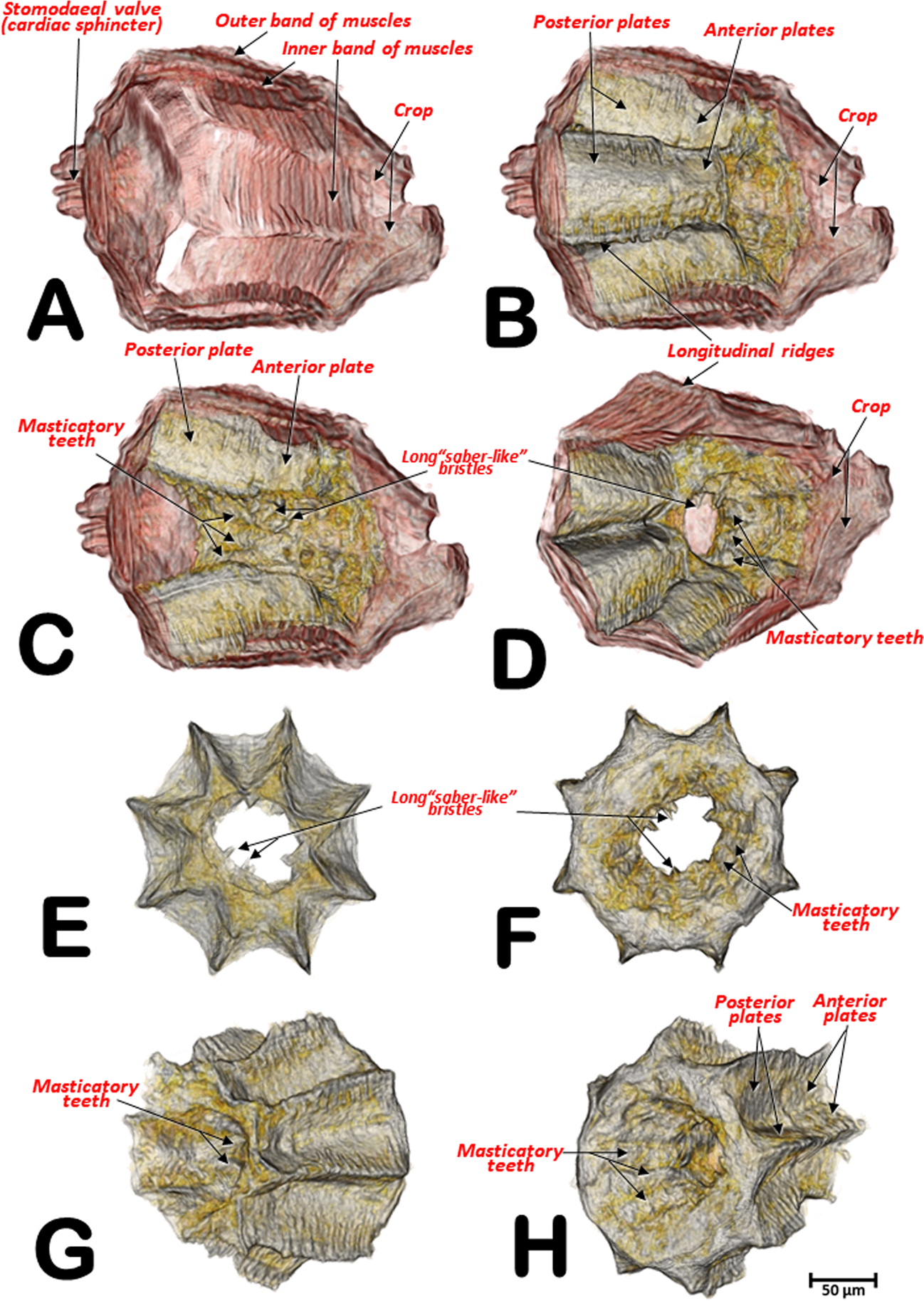

Figure 7
From: Anatomical study of the coffee berry borer (Hypothenemus hampei) using micro-computed tomography
Micro-CT volume rendered images of the internal structures of the proventriculus from different perspective views: right-lateral (A,B,C), right-antero-posterior (D), anterior (E), posterior (F), left antero-posterior (G) and right-postero-anterior (H). Different perspectives of the grinding sclerotized complex isolated (E–H). A: a superficial window was opened, and the grinding sclerotized complex removed; B,D: as A but including the grinding complex; C: as B but the grinding complex has been superficially sagittally cut, eliminating one side of the octagonal structure.
