Figure 1

From: Mitochondrial genome of Chinese grass shrimp, Palaemonetes sinensis and comparison with other Palaemoninae species

Figure 1

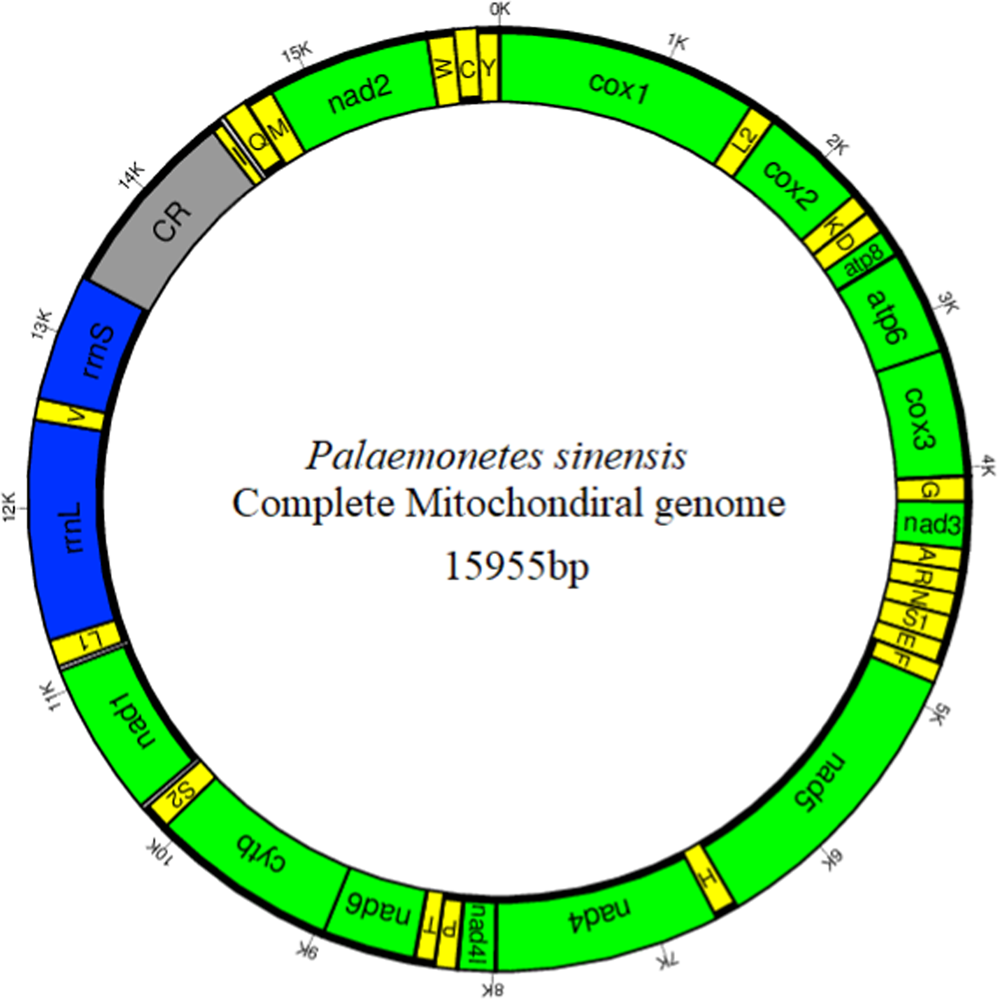

Graphical map of the mitogenome of P. sinensis. PCGs and ribosomal RNA genes are shown using standard abbreviations. Genes for transfer RNAs are abbreviated using a single letter. S1 = AGN, S2 = UCN, L1 = CUN, L2 = UUR. CR = control region. PCGs are green, tRNAs are yellow, rRNAs are blue, and CR is grey. Outside line and inside line indicate heavy strand and light strand, respectively. Bold line represents transcribed strand.
