From: Pleiotropic effects of alpha-SNAP M105I mutation on oocyte biology: ultrastructural and cellular changes that adversely affect female fertility in mice

Figure 4

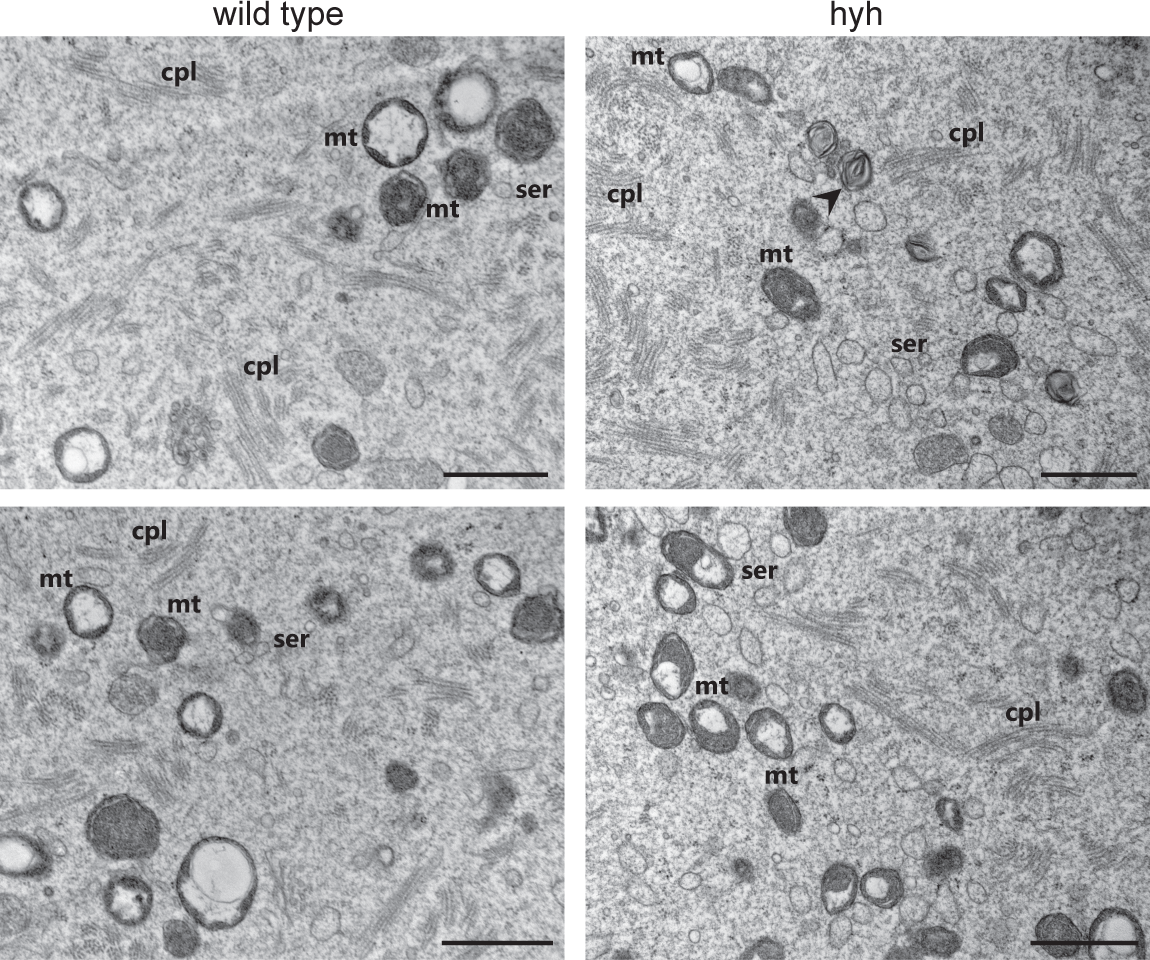

Cytoplasmic and mitochondrial ultrastructure in wild type and hyh MII oocytes. Representative electronmicrographs of MII oocytes cytoplasm from wild type and mutant homozygous (hyh) mice. Images show different cytoplasmatic structures as mitochondria, which are round or oval with or without vacuola (mt), the smooth endoplasmic reticulum (ser), which is mostly vesicular, and the extense fibrillar matrix of cytoplasmic lattice (cpl). Scale bar: 1 μm.
