From: Decreased thermal tolerance under recurrent heat stress conditions explains summer mass mortality of the blue mussel Mytilus edulis

Figure 4

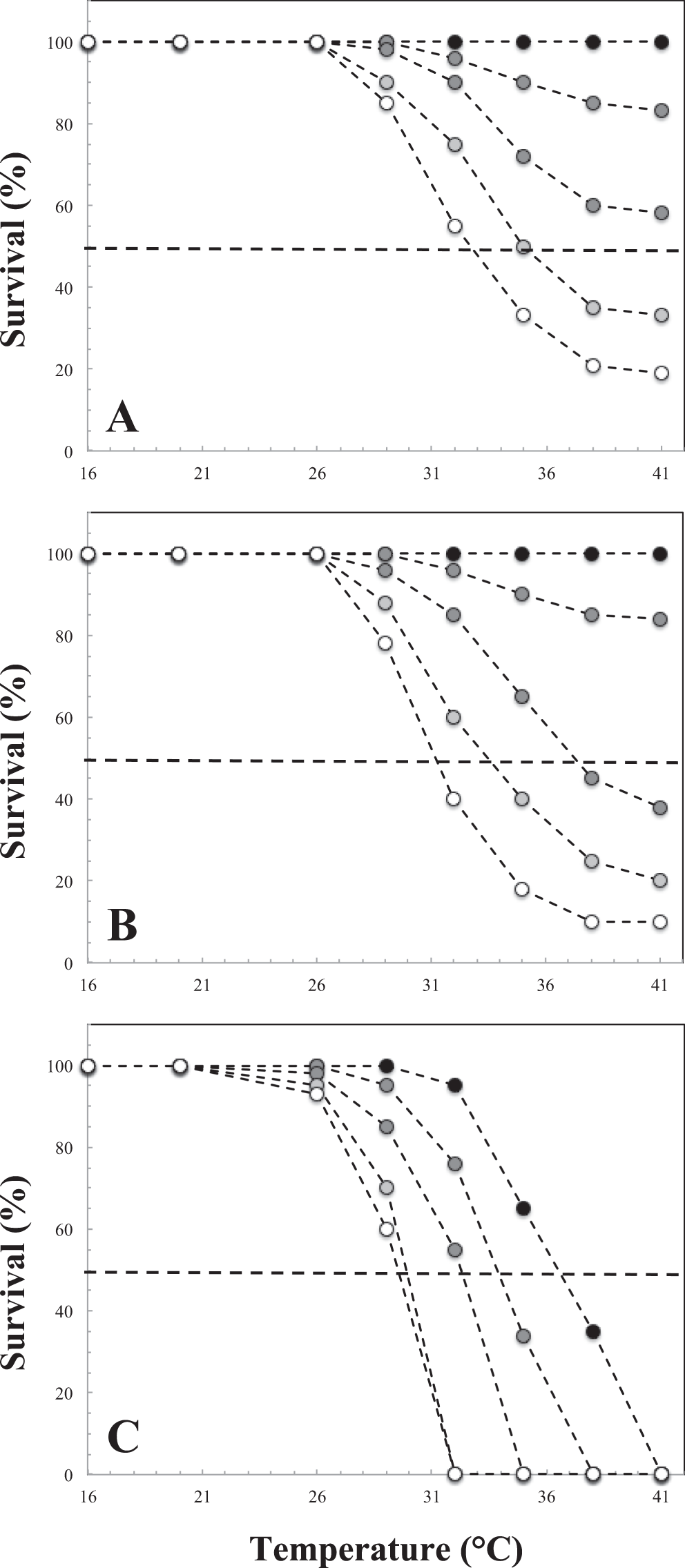

Survival rates (%) of M. edulis as a function of experimental temperature for thermal exposure of 1.5 hour (A), 3 hours (B) and 6 hours (C), where each separate curve is a separate exposure event. Black dots: first exposure, dark grey dots: second exposure; intermediate grey dots: third exposure; light grey dots: fourth exposure; white dots: fifth exposure. The dashed horizontal line represents a 50% survival rate.
