Figure 9

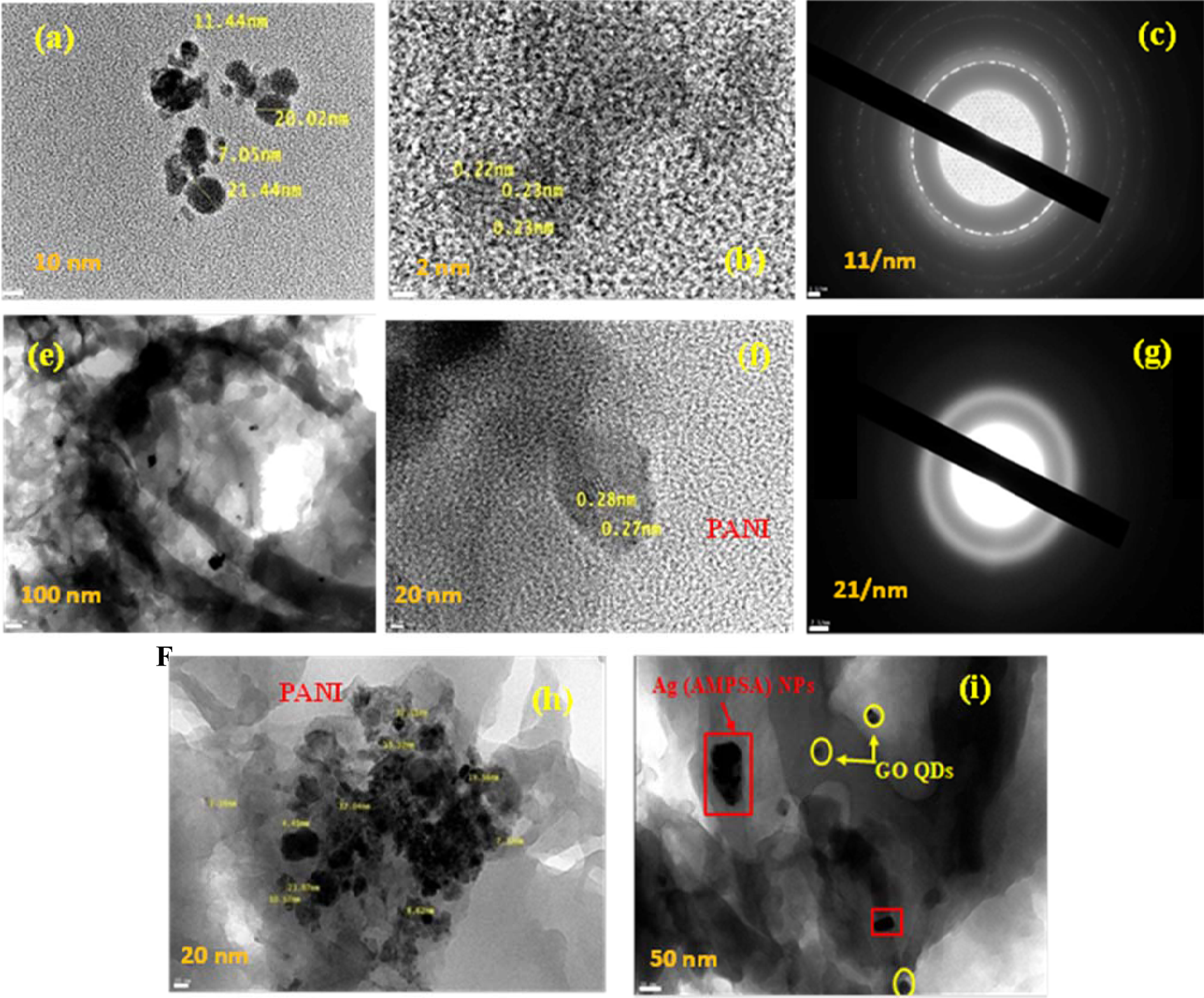

HRTEM images of GO QDs (a,b), SAED of GO QDs (c), PANI/Ag (AMPSA) NC (e,f), SAED of PANI/Ag (AMPSA) NC (g) and PANI/Ag (AMPSA)/GO QDs NC (h,i).
Figure 9 | Scientific Reports
HRTEM images of GO QDs (a,b), SAED of GO QDs (c), PANI/Ag (AMPSA) NC (e,f), SAED of PANI/Ag (AMPSA) NC (g) and PANI/Ag (AMPSA)/GO QDs NC (h,i).
