From: Effects of sampling strategy and DNA extraction on human skin microbiome investigations

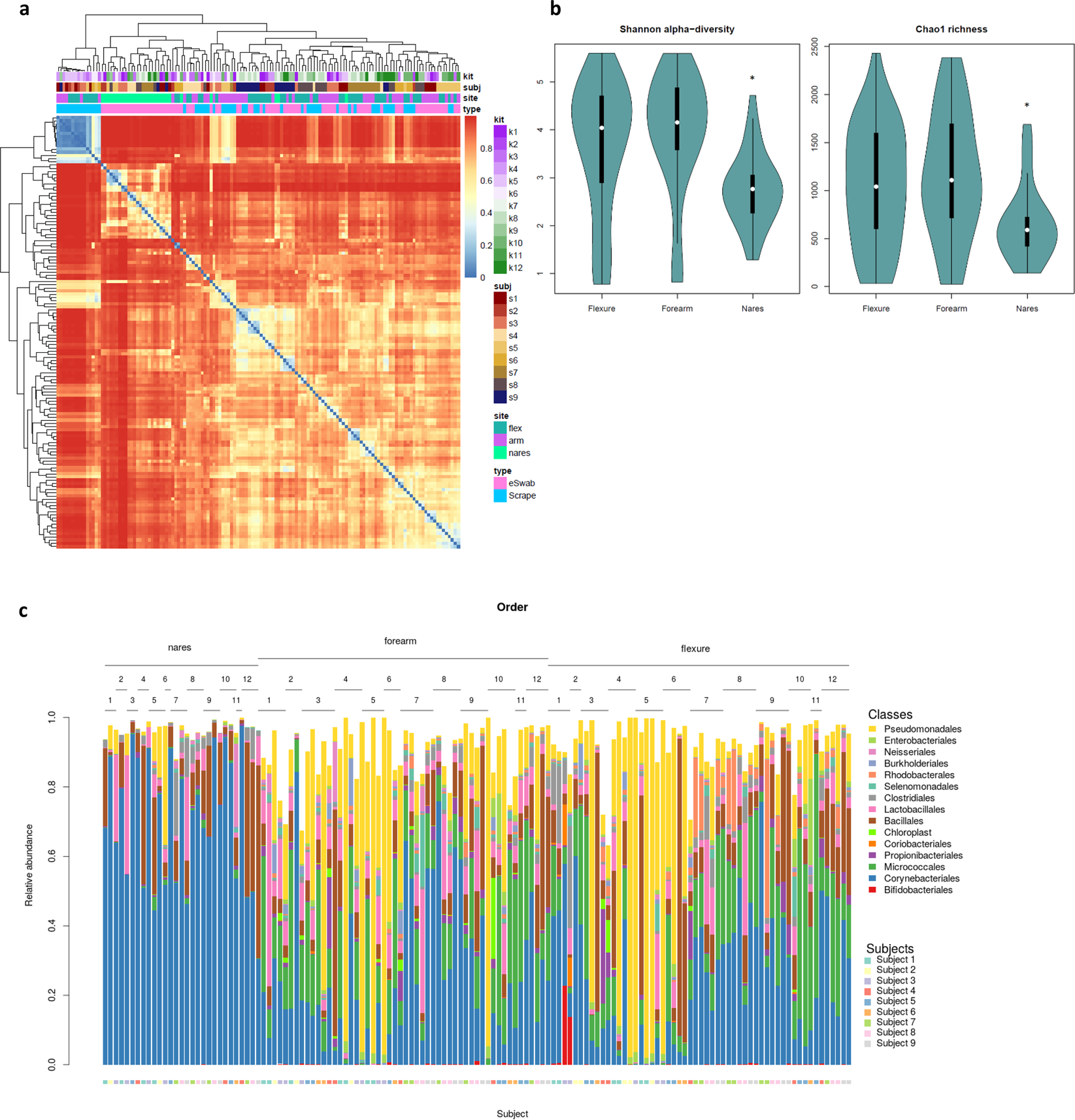

Variation by skin site. (a) A heatmap of Bray-Curtis distances between samples, with metadata plotted on the axis above and color code to the right. 0 indicates that samples share the same OTU and 1 that they are totally different. (b) Violin plots illustrating Shannon alpha-diversity and Chao1 richness according to skin site, * when statistical significance in a Kruskal-Wallis-test corrected for multiple testing by the Benjamini-Hochberg procedure (p < 0.05). (c) Bar charts depicting relative abundances of bacteria at the order taxonomic level. Samples are sorted by skin site and number of kit used is assigned above the charts. Individual subject numbers is indicated by the colour bar at the bottom of the figure.
