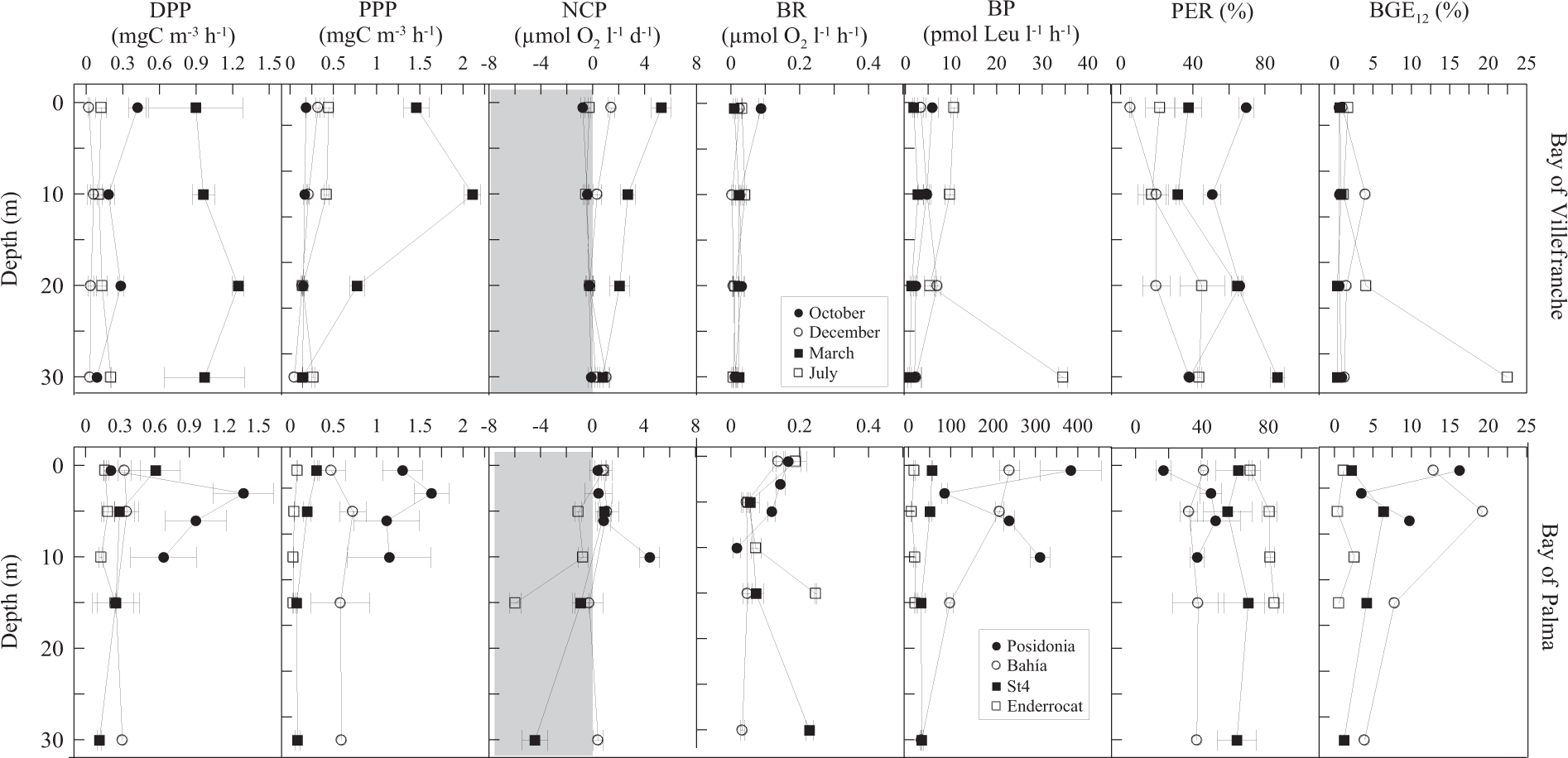

Figure 4
From: Drivers of Microbial Carbon Fluxes Variability in Two Oligotrophic Mediterranean Coastal Systems
Vertical profiles of the rates of dissolved (DPP) and particulate (PPP) primary production (mg C m−3 h−1), net community production (NCP, µmol O2 l−1 d−1), bacterial respiration (BR, µmol O2 l−1 h−1) and bacterial production (BP, pmol Leu l−1 h−1). Also show the percent extracellular release (PER = DPP / [DPP + PPP]) and bacterial growth efficiency (BGE12, %) in the Bay of Villefranche (upper panels) and the Bay of Palma (lower panels). Error bars represent standard error.
