Figure 6
From: Truncated TALE-FP as DNA Staining Dye in a High-salt Buffer

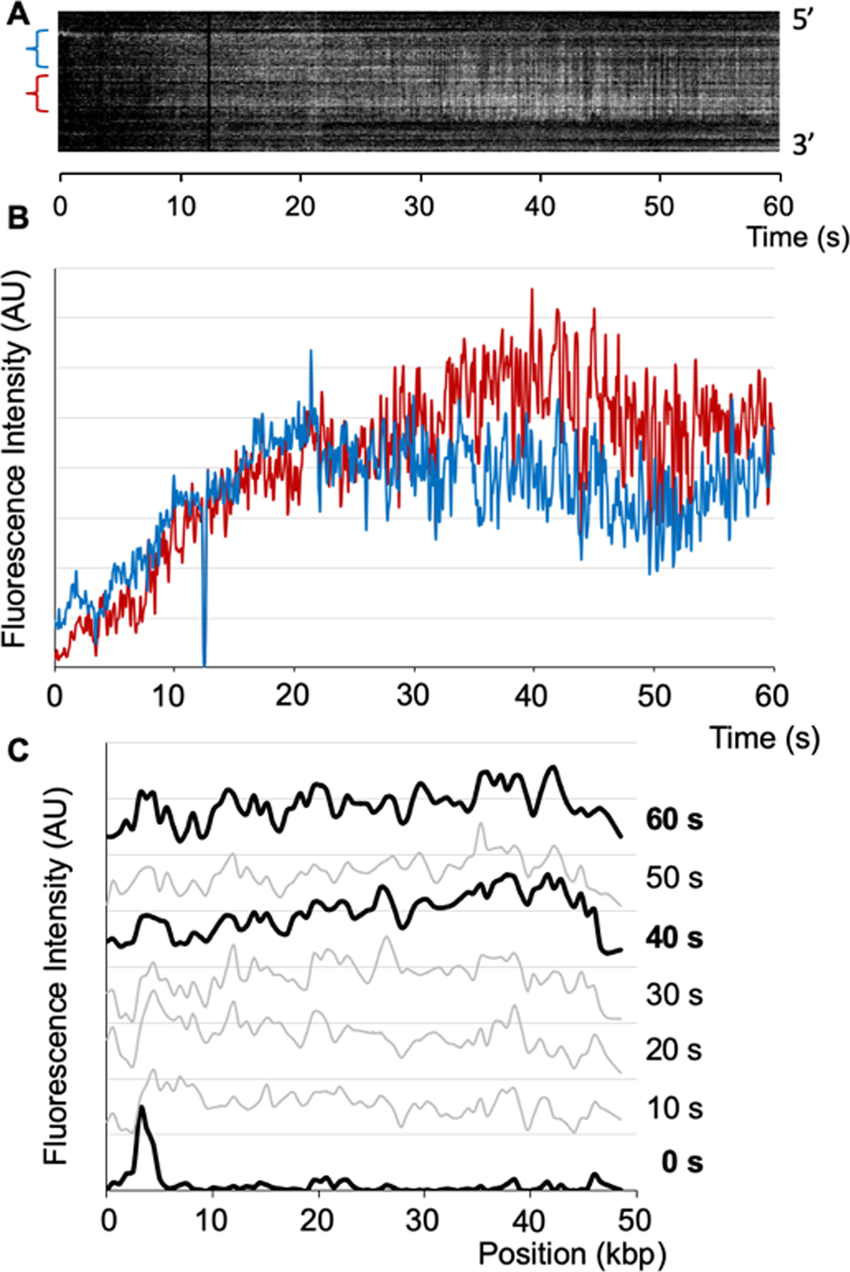

Real-time observation of λ DNA staining with tTALE-FP. (A) Kymogram of λ DNA staining with tTALE-FP (2 nM) in a 1 × TE buffer. Each blue and red bracket represents the GC-rich and the AT-rich regions, respectively. (B) Fluorescence intensity profiles over time for the GC-rich (blue) and the AT-rich (red) regions of tTALE-FP stained λ DNA. (C) Fluorescence intensity along λ DNA (5′ → 3′) at each 10-sec interval (see Movie S2).
