Figure 8
From: Truncated TALE-FP as DNA Staining Dye in a High-salt Buffer

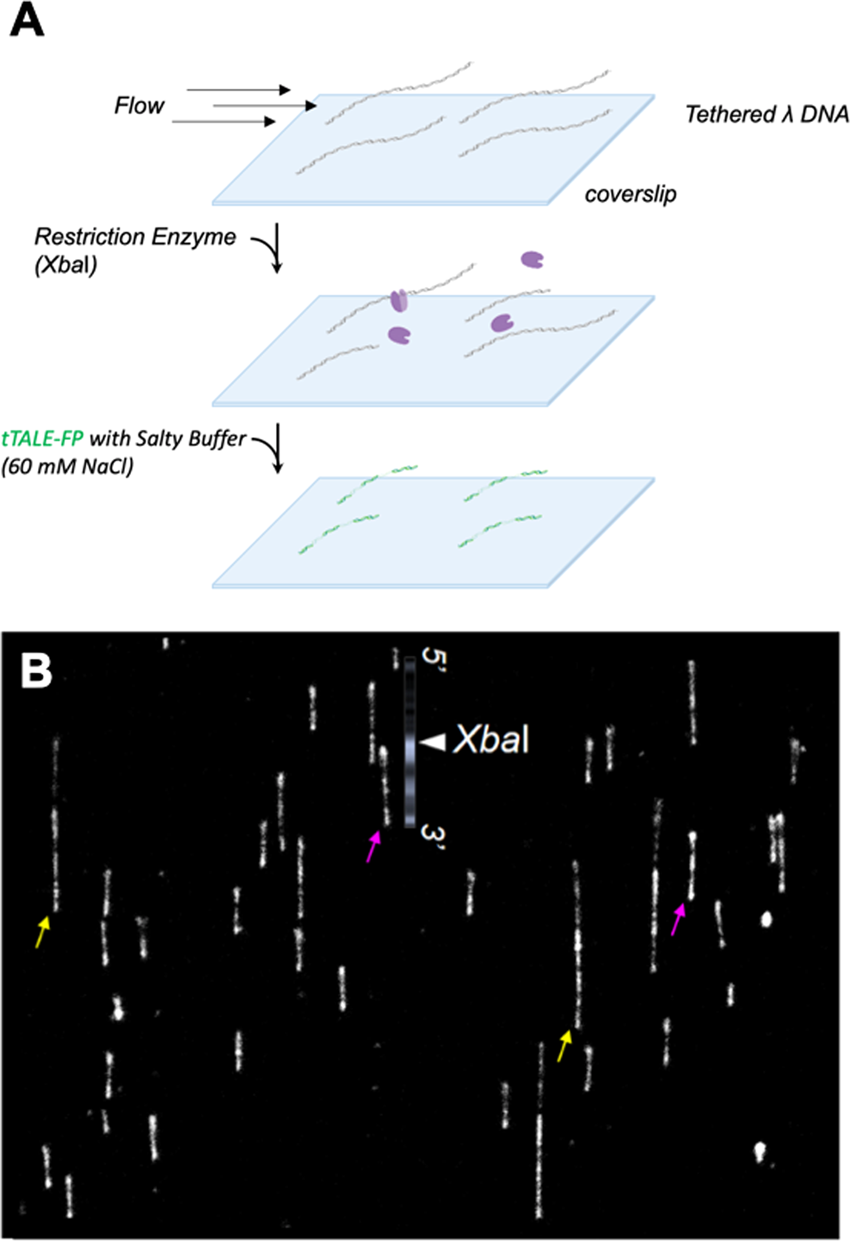

DNA digestion and confirmation by the optical map. (A) Schematic of XbaI digested λ DNA patterned with tTALE-FP (2 nM) to reveal the genome-specific pattern (made in ©BioRender - biorender.com). (B) λ DNA in a mixture of tTALE-FP and NaCl solution. Yellow arrows indicate whole λ DNA and pink arrows indicate digested λ DNA, compared with AT-specific consensus genomic map.
