Figure 4
From: A novel nondestructive diagnostic method for mega-electron-volt ultrafast electron diffraction

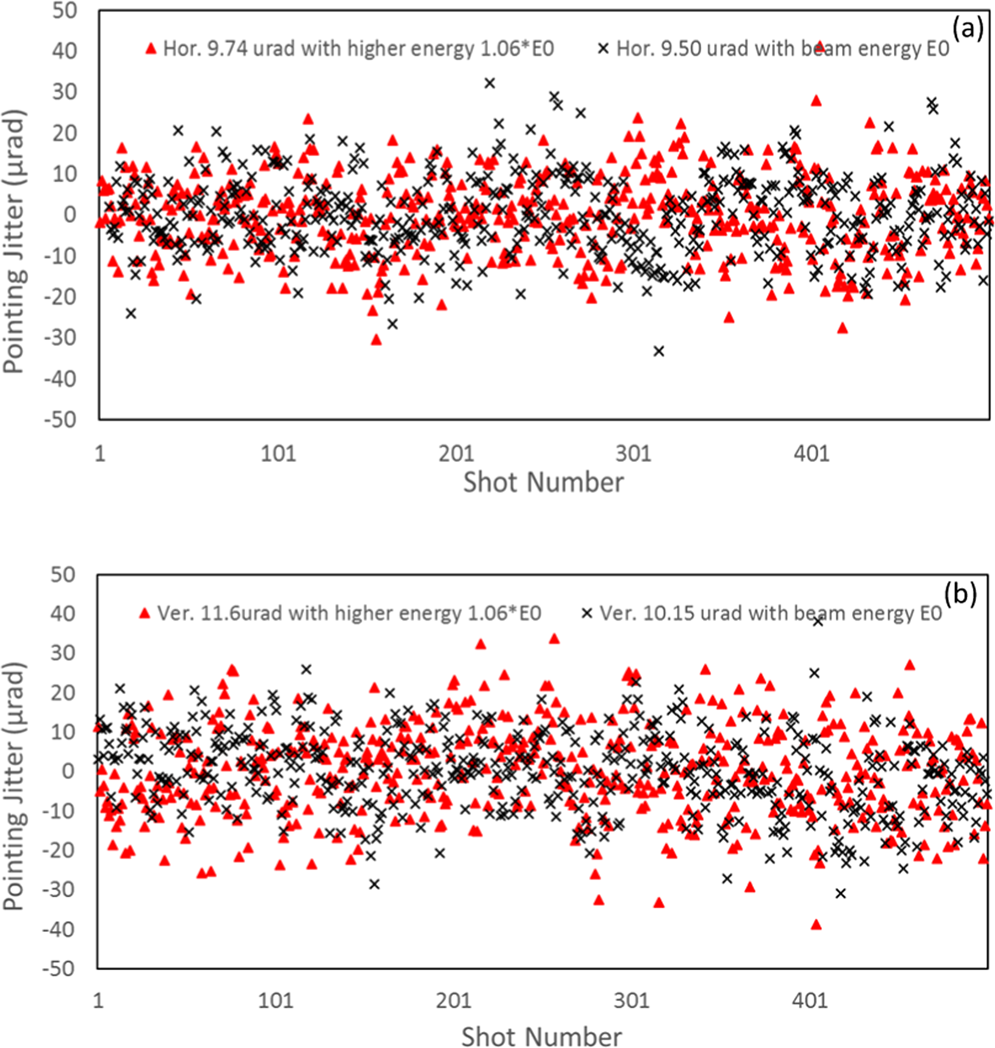

The shot-to-shot pointing jitter measured at two different electron beam energies: 1.06E0 (red) and E0 (black) in the case with comparably small energy jitters. The results are similar, about 10 ยตrad spatial-pointing jitter in both horizontal (a) and vertical (b) directions.
