Figure 5
From: A novel nondestructive diagnostic method for mega-electron-volt ultrafast electron diffraction

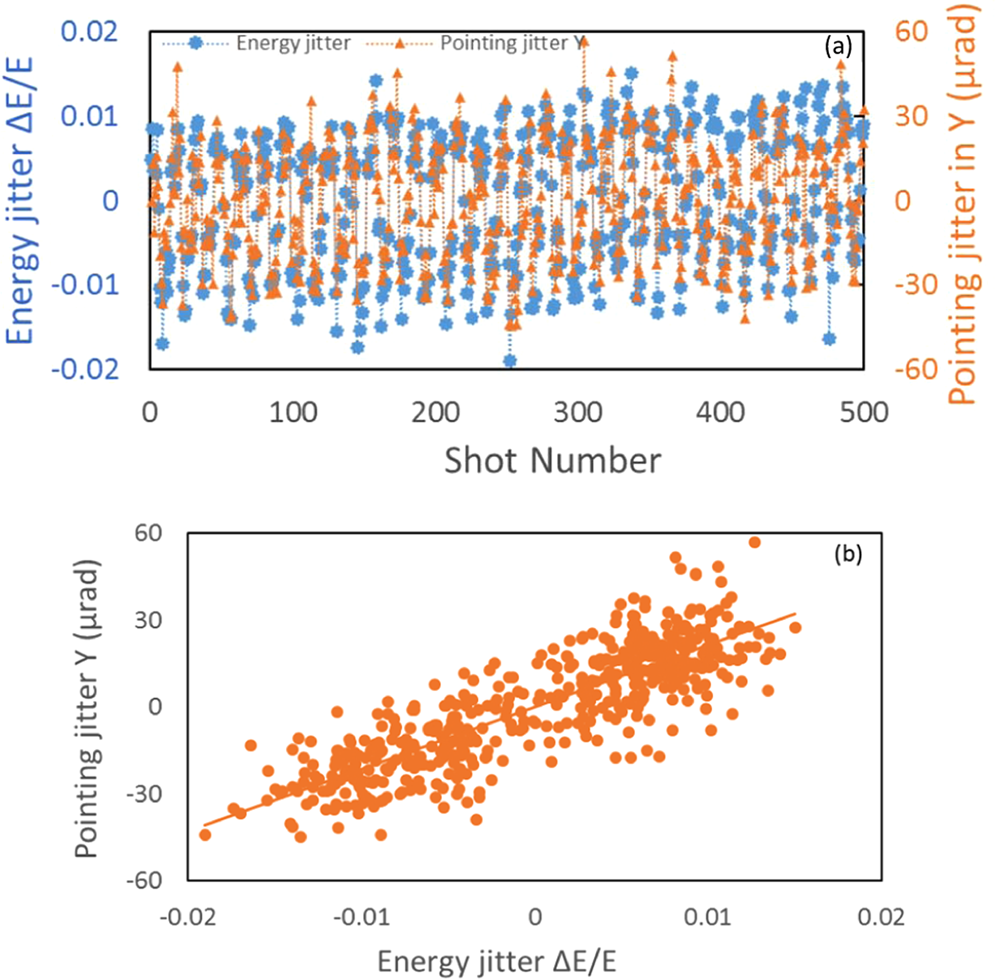

(a) (top) energy jitter (blue) and pointing jitter in y (orange) vs shot number are plotted as the primary y axis and secondary y axis respectively. (b) (bottom) correlation of the pointing jitter and energy jitter.
