Figure 6
From: A novel nondestructive diagnostic method for mega-electron-volt ultrafast electron diffraction

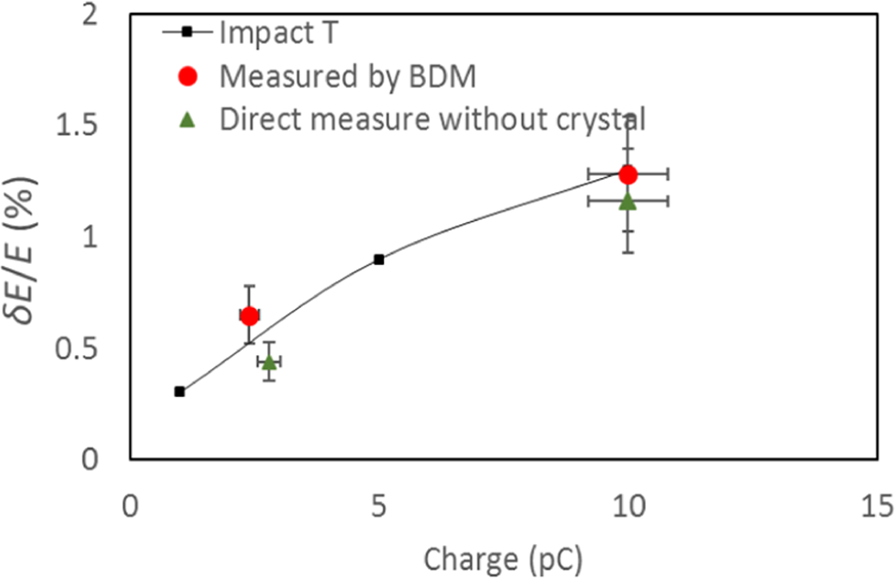

The electron beam energy spread measured by the BDM (red circles) and by direct beam size measurement (green triangles). They agree well with Impact-T simulations (black squares). The horizontal error comes mainly from the laser power fluctuation. The vertical error is described in the text.
