Figure 1 | Scientific Reports

Figure 1

From: Using DNA-based stable isotope probing to reveal novel propionate- and acetate-oxidizing bacteria in propionate-fed mesophilic anaerobic chemostats

Figure 1

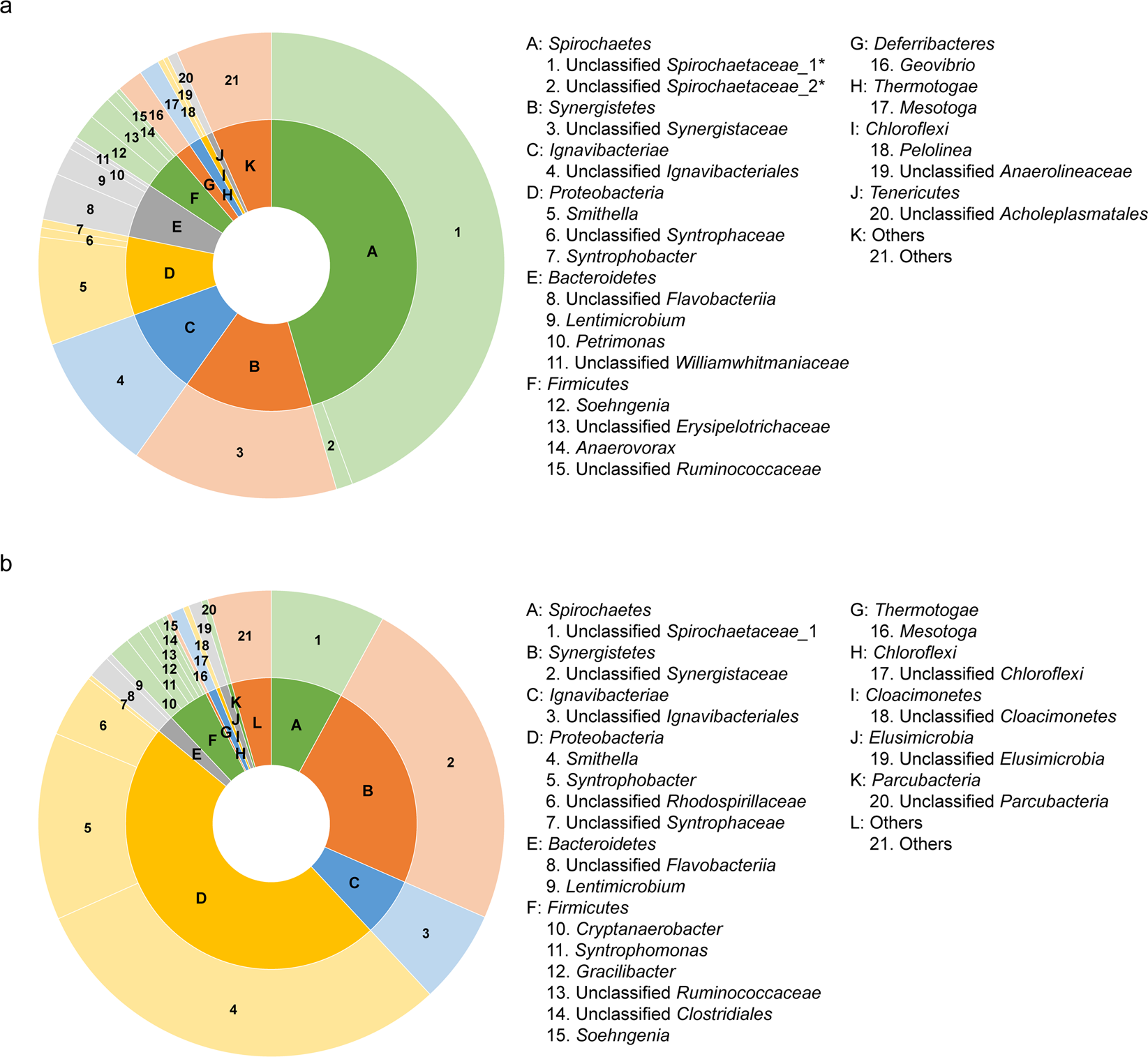

Composition of bacterial community in two mesophilic propionate-fed chemostats. (a) PL chemostat: operated at a dilution of 0.05 d−1; (b) PH chemostat: operated at a dilution of 0.15 d−1. *Unclassified Spirochaetaceae_1 and unclassified Spirochaetaceae_2* were two different genera affiliated to the family Spirochaetaceae.
