Figure 3

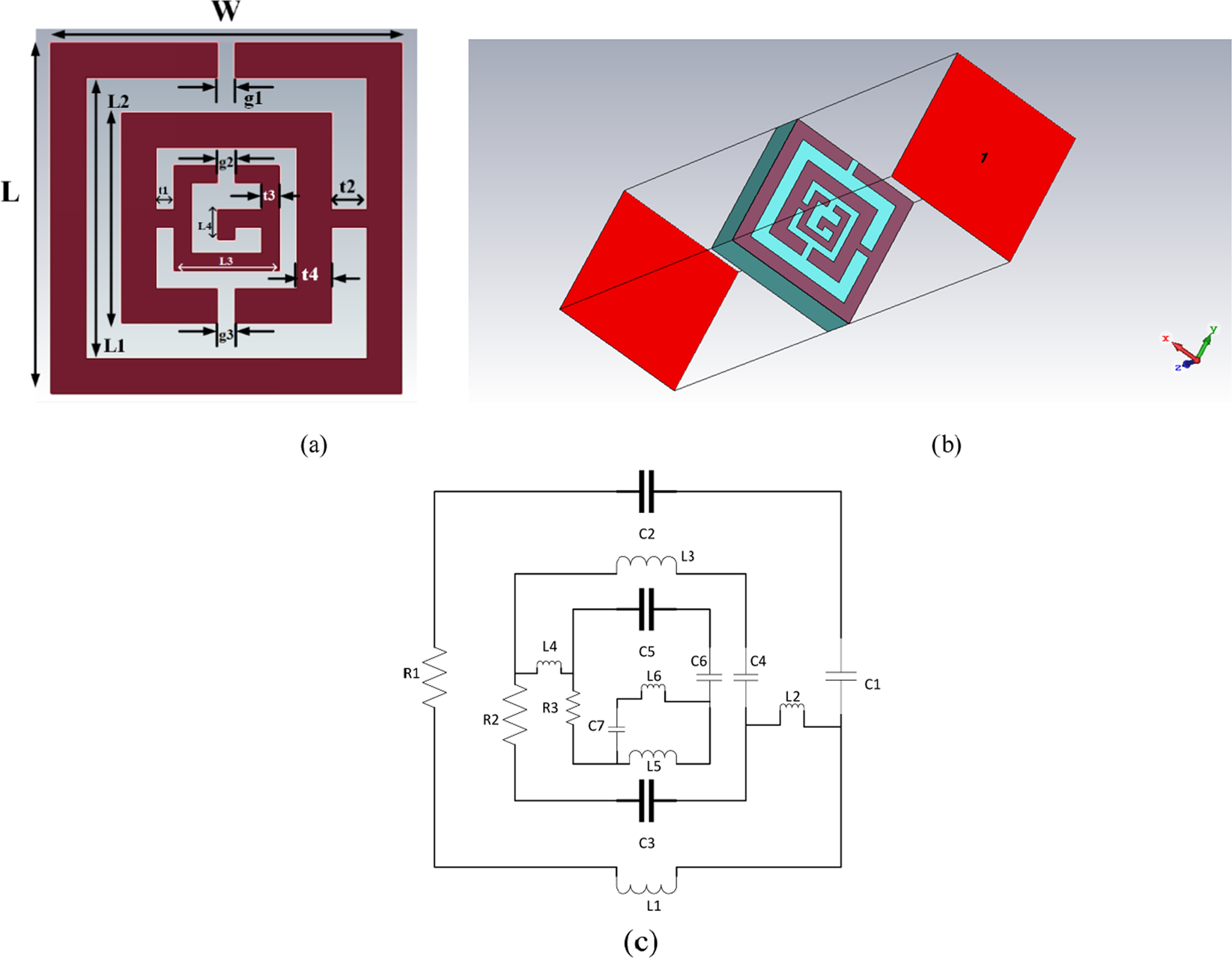

(a) Top view of MS unit cell, (b) Simulation setup, (c) Equivalent circuit diagram. (Optimized parameters: W = 5 mm, L = 5 mm, L1 = 4 mm, L2 = 3 mm, L3 = 1.5 mm, L4 = 0.43 mm, t1 = 0.25 mm, t2 = 0.5 mm, t3 = 0.25 mm, t4 = 0.5 mm, g1 = g2 = g3 = 0.25 mm).
