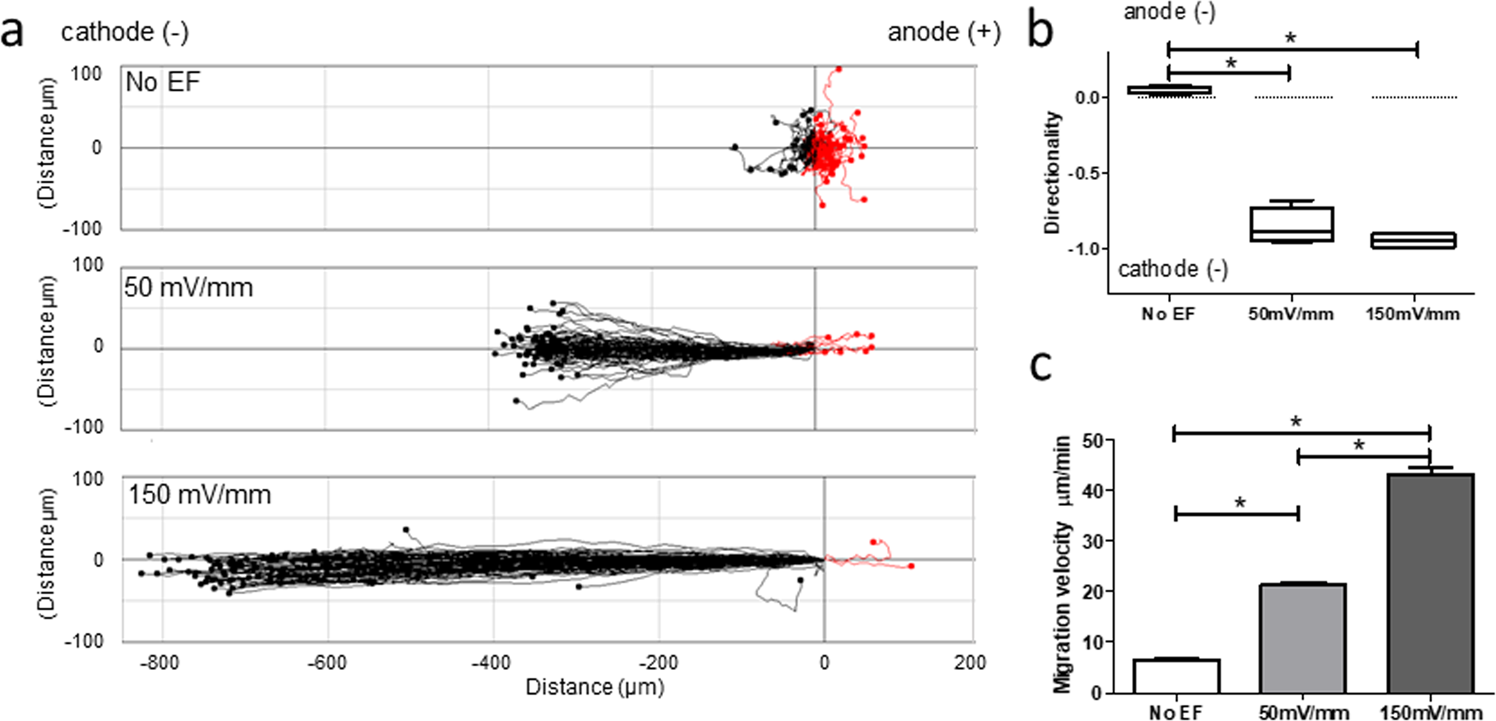

Figure 1
From: Physiological strength electric fields modulate human T cell activation and polarisation
Human T lymphocytes migrate directionally to the cathode. Migrational displacement (Td) of human T lymphocytes migrating with no EF exposure or EF of 50 and 150 mV/mm over a 15 minute period, with 4 visual fields per condition (a). Each point represents the final position of a single cell relative to their starting position at 0 h at the origin. Cell migration was recorded by tracking Td between frames at 30 second intervals. Directedness of T cell migration (b). Velocity of cell migration (c). Data are representative of independent experiments from 3 individual lymphocyte preparations, 100 cells analysed per donor per condition. Paired t test; *P < 0.001.
