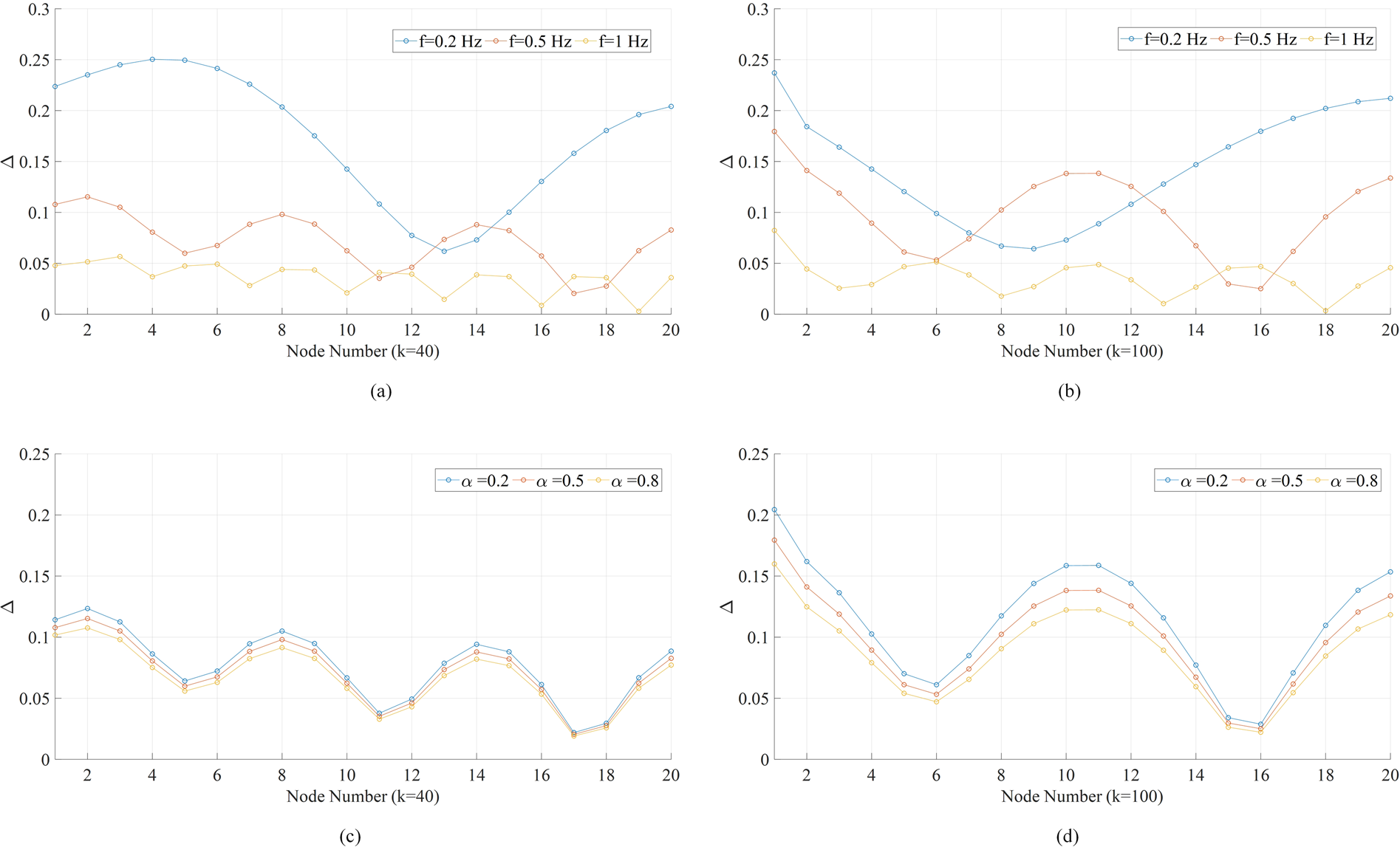

Figure 6
From: Low-frequency oscillations in coupled phase oscillators with inertia
Phase fluctuation peak-to-peak magnitude (Δ) distributions in the linear 20-node network in Fig. 5. (a) Results when global coupling strength k = 40 and driving forcing frequency f = 0.2,0.5,1 Hz. The damping coefficient α = 0.5 and forcing amplitude A = 1. (b) Results when global coupling strength k = 100 and other parameters are the same as (a). (c) Results when global coupling strength k = 40, forcing amplitude A = 1, frequency f = 0.5 Hz, and damping coefficient α = 0.2,0.5,0.8. (d) Results when global coupling strength k = 100, and other parameters are the same as (c).
