Figure 9

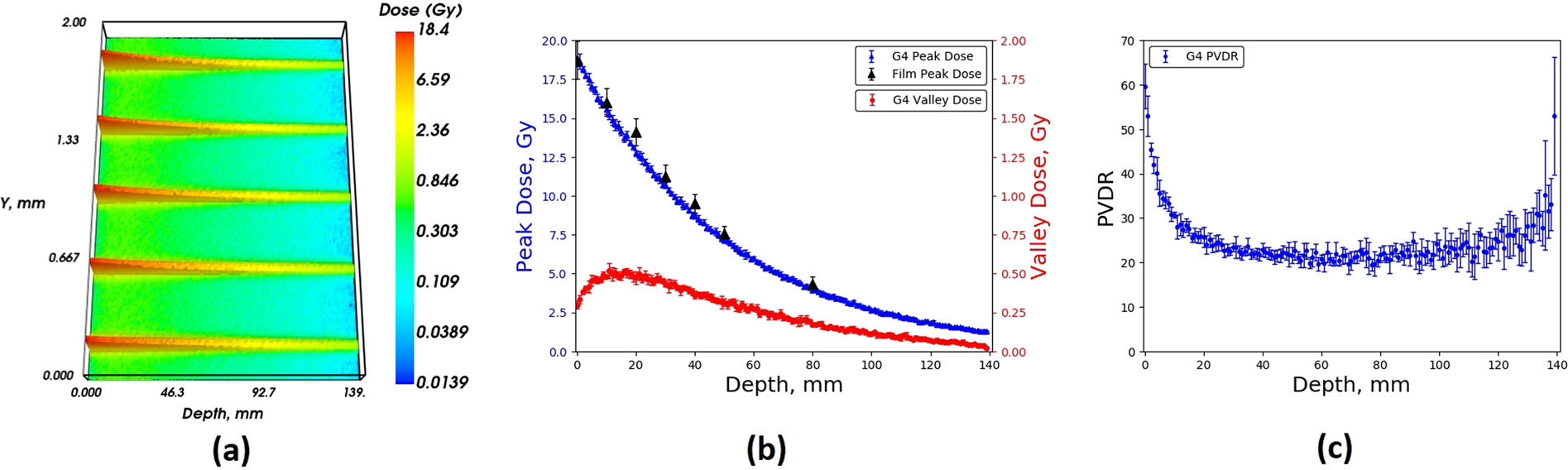

Geant4 (a) 2D MB depth dose distribution, (b) Peak dose and valley dose, (c) PVDR, within an RMI457 Solid Water^® phantom for a BDA of height 2.014 mm compared with EBT3 film, simulation for a maximum wiggler field strength of 2 T.
