Figure 3

From: Long-term stability of marine dissolved organic carbon emerges from a neutral network of compounds and microbes

Figure 3The alt text for this image may have been generated using AI.

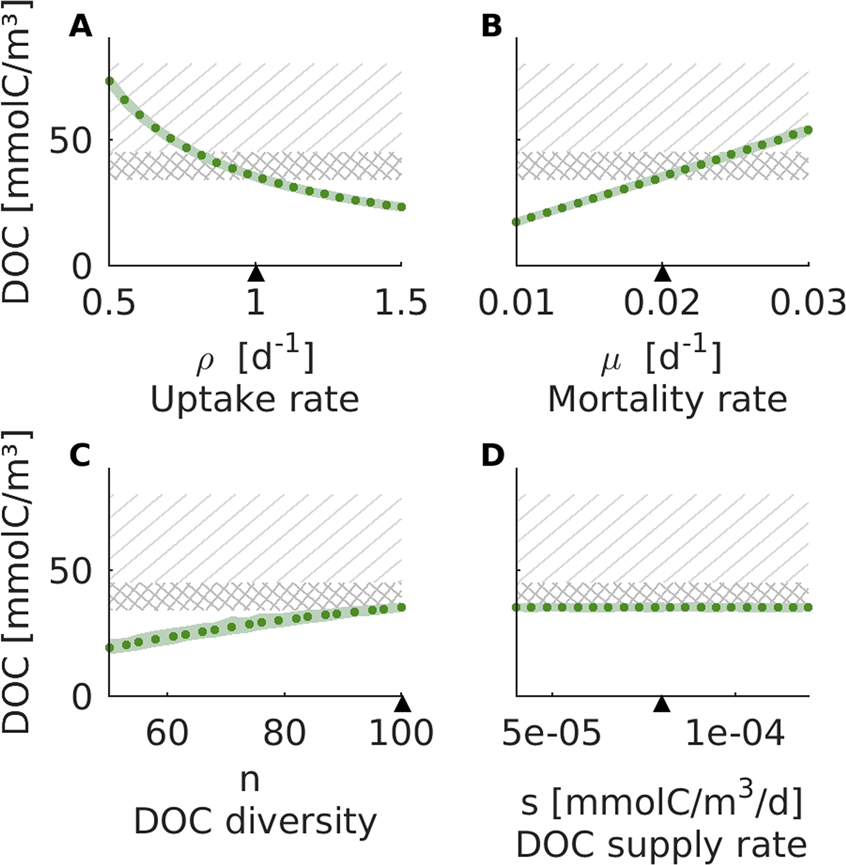

Size of the DOC reservoir. The total concentration of DOC after 20,000 simulation years for varying parameter values: (A) the microbial uptake rate ρ, (B) the microbial mortality rate µ, (C) the number of DOC units n, and (D) the total supply rate of DOC s (see Supplement, Fig. S4 for the remaining parameters). Each simulation was repeated 50 times, the green dots indicate the mean, the light green area represents the minimum and maximum concentrations from the 50 runs. The black triangle indicates the default value of the parameter. The hatched region indicates the range of DOC concentrations typically observed in the surface ocean, the cross-hatched region indicates typical deep sea DOC values1,34. For more scenarios we refer to the Supplementary Material.
