Figure 5

From: Long-term stability of marine dissolved organic carbon emerges from a neutral network of compounds and microbes

Figure 5The alt text for this image may have been generated using AI.

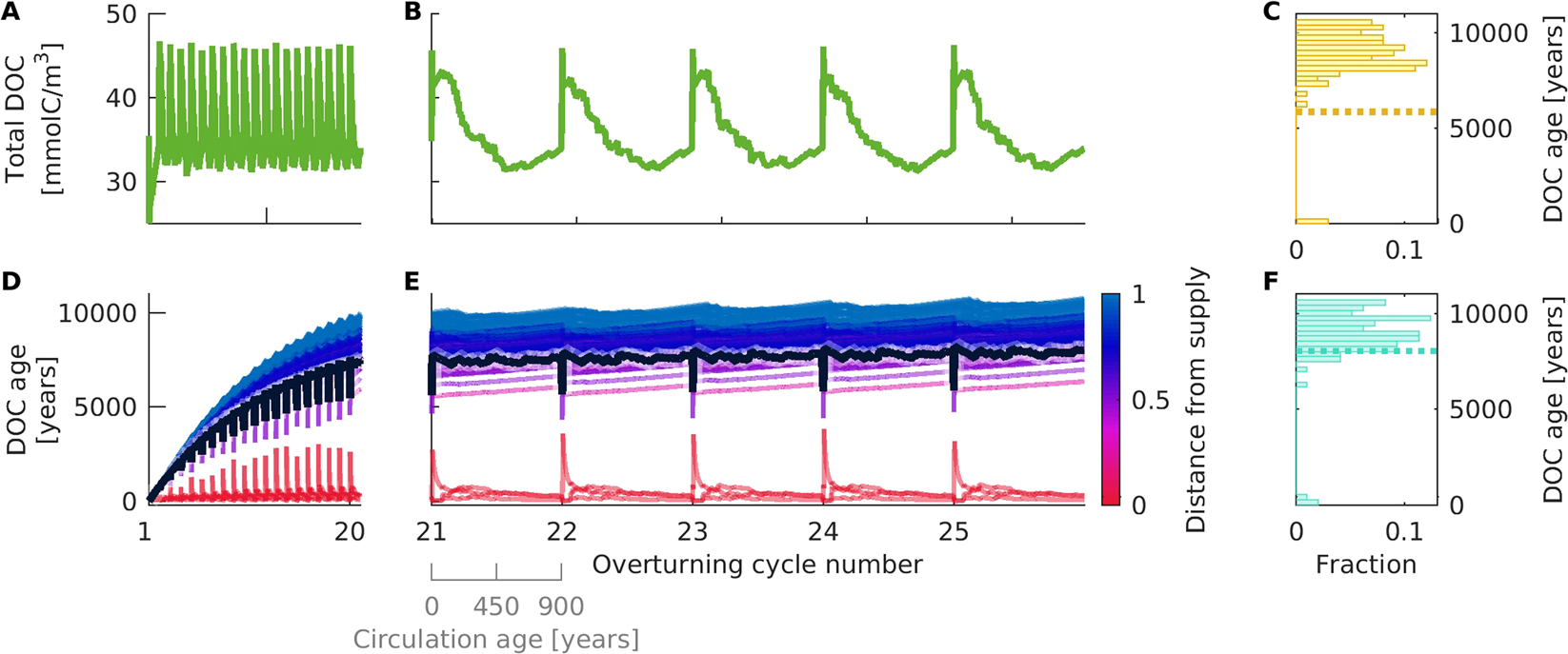

Millennial scale stability of DOC. The variations in total supply rate along the simulated Lagrangian ocean circulation (see Fig. 4) influence (A, B) the total DOC concentration and (D,E) the concentration-weighted mean DOC age. The bold, black line indicates the concentration-weighted mean of the average compound ages. The thin coloured lines show the mean compound age of the individual DOC compound units. Their colour indicates the proportion of microbially-reworked to primary-produced compounds: red compounds are directly supplied via primary production; blue compounds are exclusively microbially reworked. The left column of panels shows the first 20 overturning cycles, during which the system approaches a dynamic equilibrium. The right column shows the last five overturning cycles of the equilibrated system in detail. The distribution of DOC ages across compounds in the last overturning cycle is shown for the (C) surface and deep (F) supply regime. The dotted lines indicate the concentration-weighted mean age.
