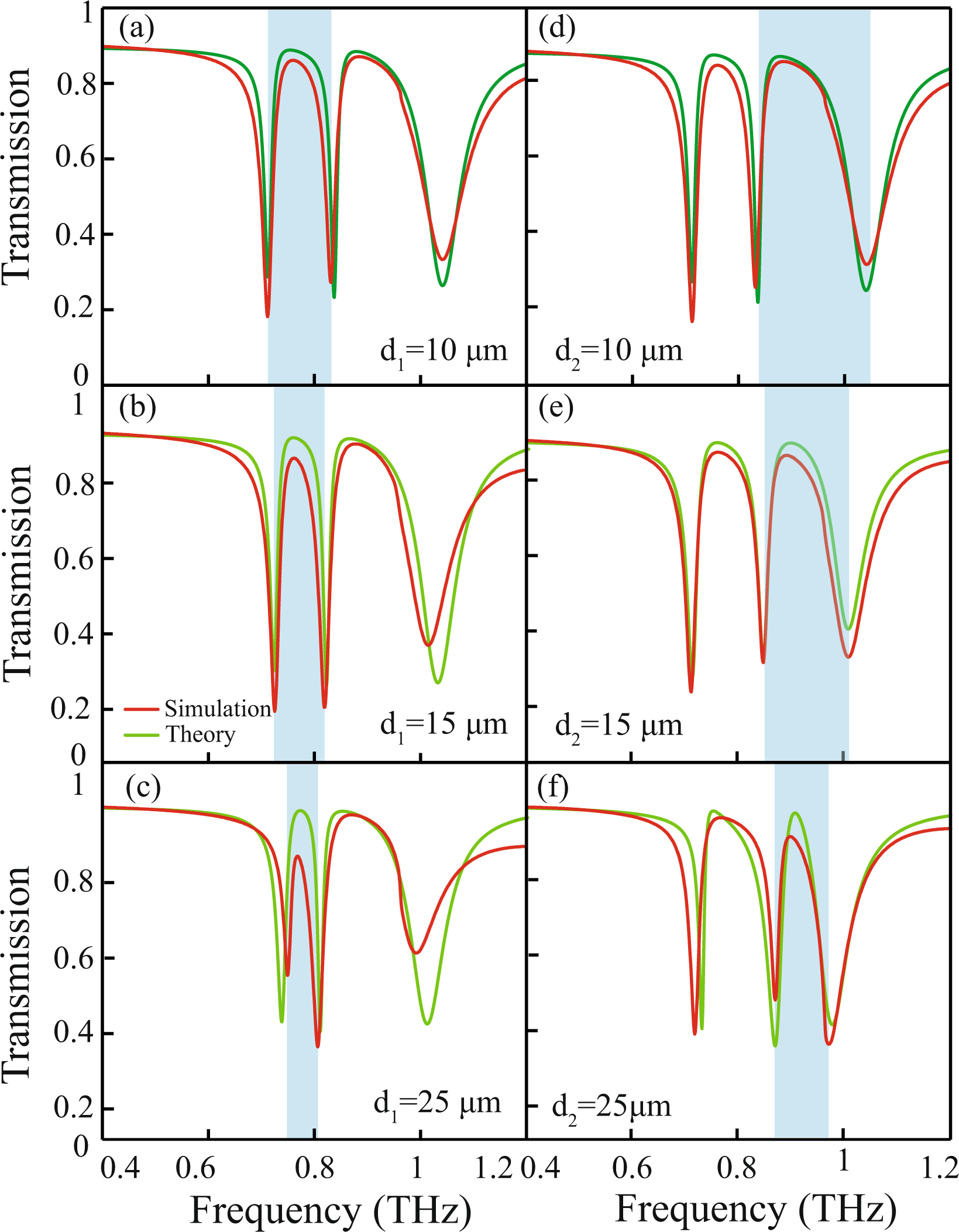

Figure 6

Simulated and theoretically fitted transmission spectra (a–c) for various distance (d₁) between the CW and right DCR for the modulation of 1^st transparency window and (d–f) for various distance (d₂) between CW and left DCR for the modulation of the 2^nd transparency window of the proposed multi-band EIT metamaterial.
