Figure 4
From: Prediction of leukocyte counts during paediatric acute lymphoblastic leukaemia maintenance therapy

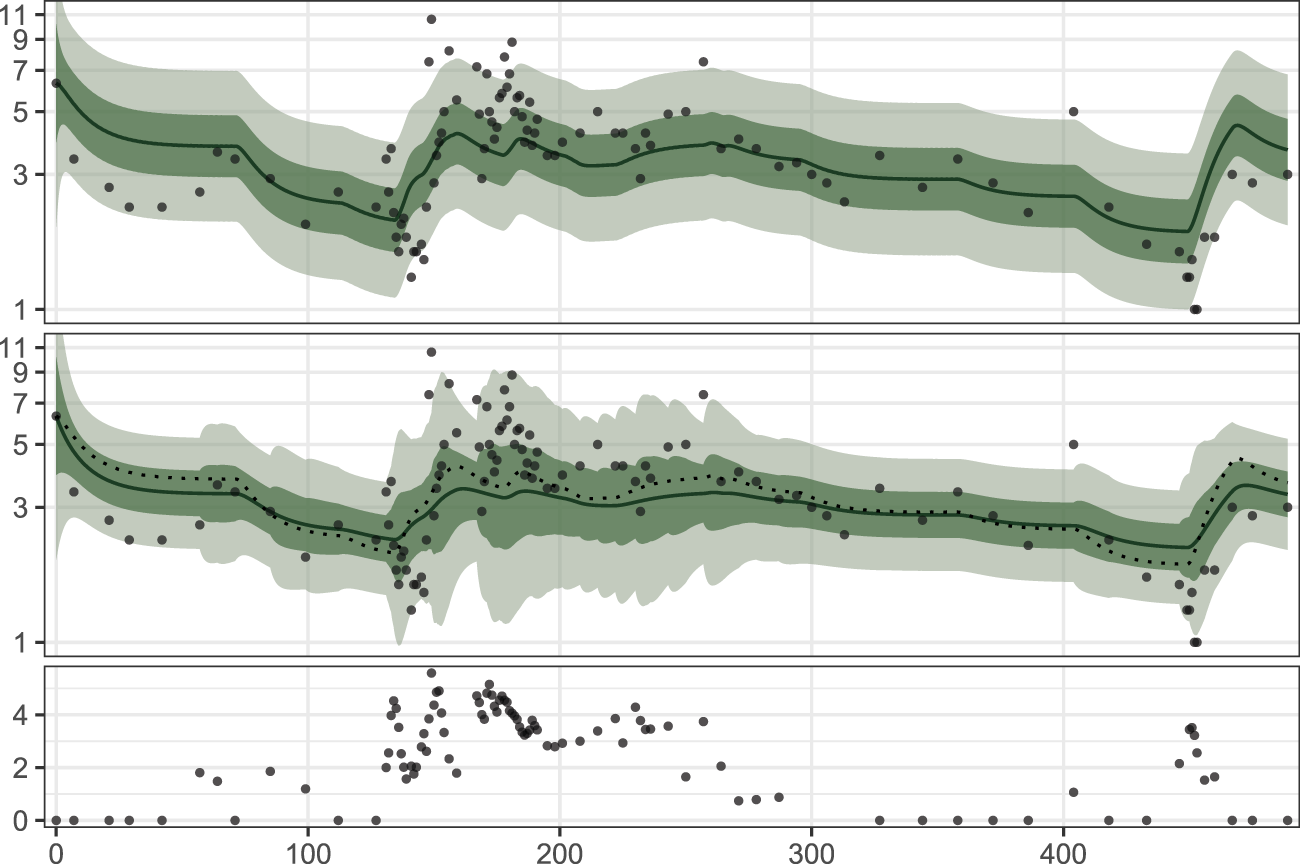

The fit of the models TCM (top) and TCM-CRP (middle) to the dataset of patient 4. The \(\log (x+1)\)-transformed CRP measurements are shown at the bottom. The dotted line in the plot for TCM-CRP is the fitted mean of TCM.
