Figure 1

From: Nitric oxide modulating ion balance in Hylotelephium erythrostictum roots subjected to NaCl stress based on the analysis of transcriptome, fluorescence, and ion fluxes

Figure 1

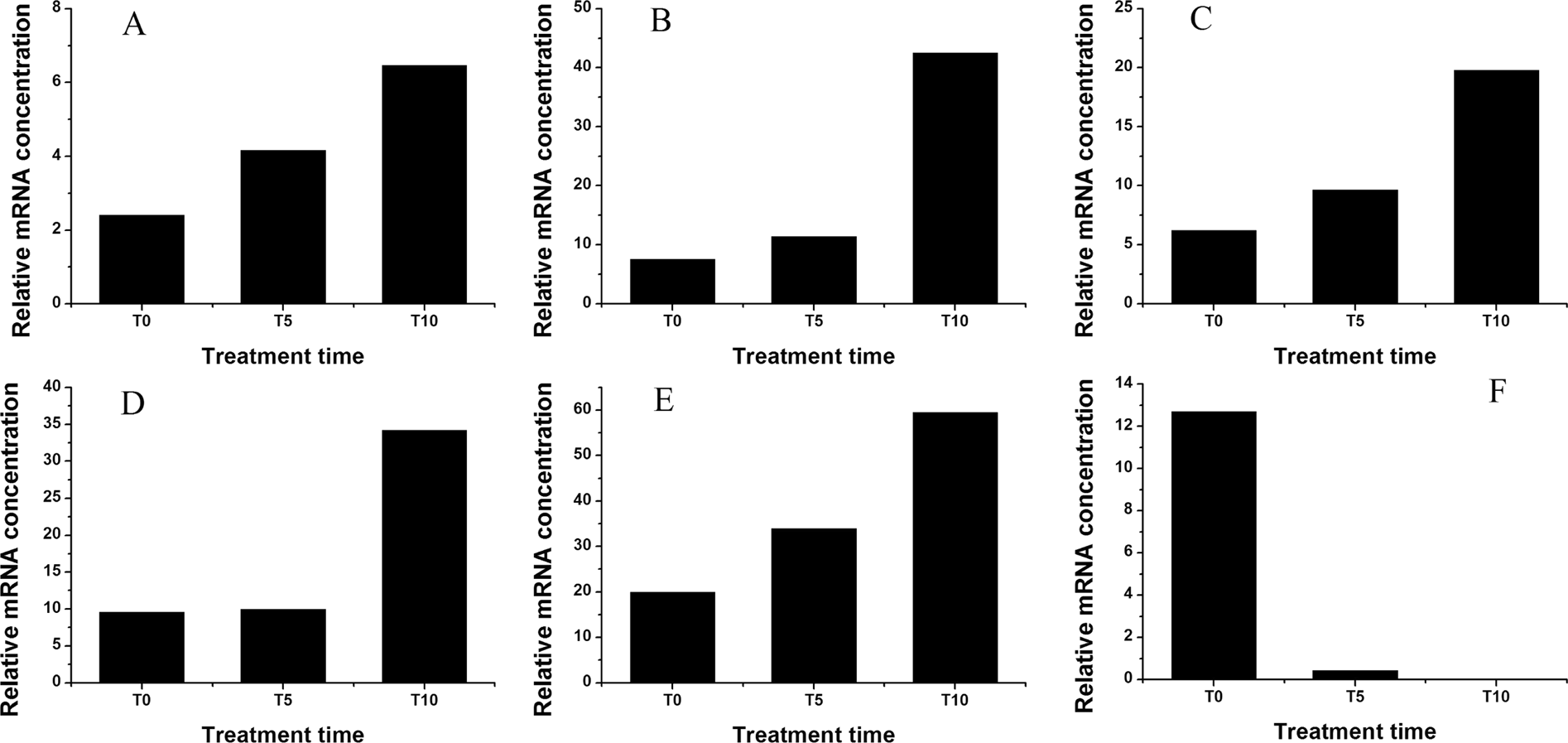

Expression profiles of DEGs annotated to Na+ and K+ transporters based on RNA-Seq. (A), TR9124|c0_g1 (SOS1); (B), TR19254|c2_g1 (AKT1); (C), TR11778|c0_g1 (NHX1); (D), TR6184|c2_g1 (NHX2); (E), TR13899|c2_g3 (NHX3); (F), TR8982|c1_g1 (HKT1). T0, T5, and T10 indicates that the samples are treated by 200 mM NaCl for 0, 5, and 10 days.
