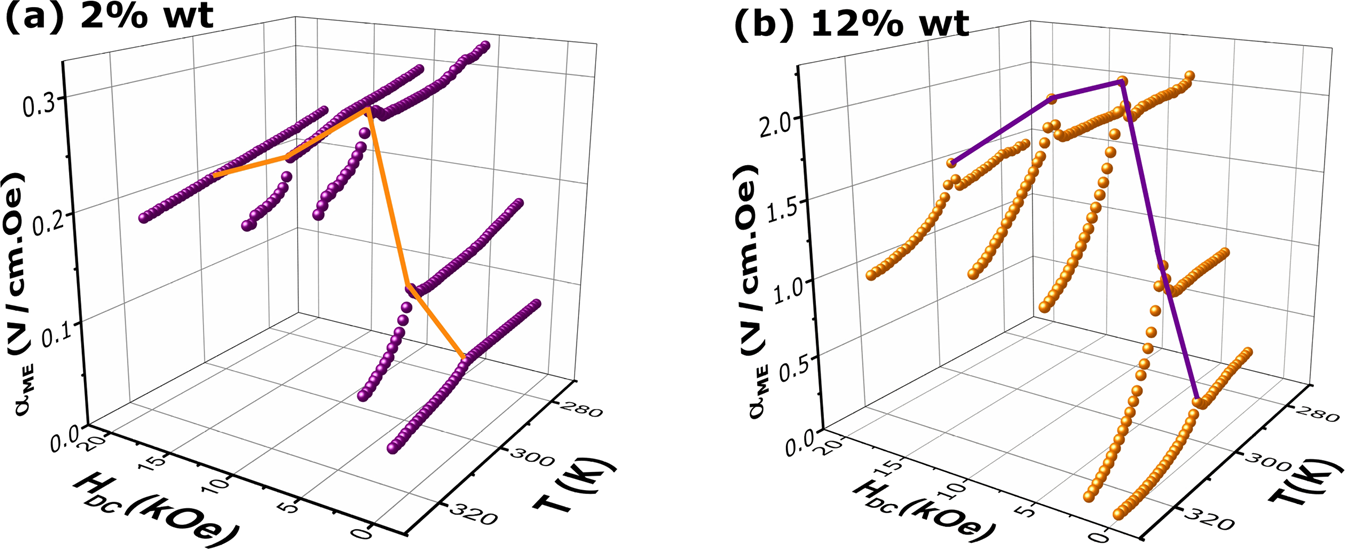

Figure 4

ME voltage coefficient \({\alpha }_{ME}\) as a function of temperature for (a) 2wt.% and (b) 12 wt.% PVDF/GSG composite samples at different DC magnetic fields. The maximum of \({\alpha }_{ME}\) occurs around 305 K, which is close to FM-PM transition, as observed in the magnetic analysis.
