Figure 3

From: Real-time reconstruction and visualisation towards dynamic feedback control during time-resolved tomography experiments at TOMCAT

Figure 3

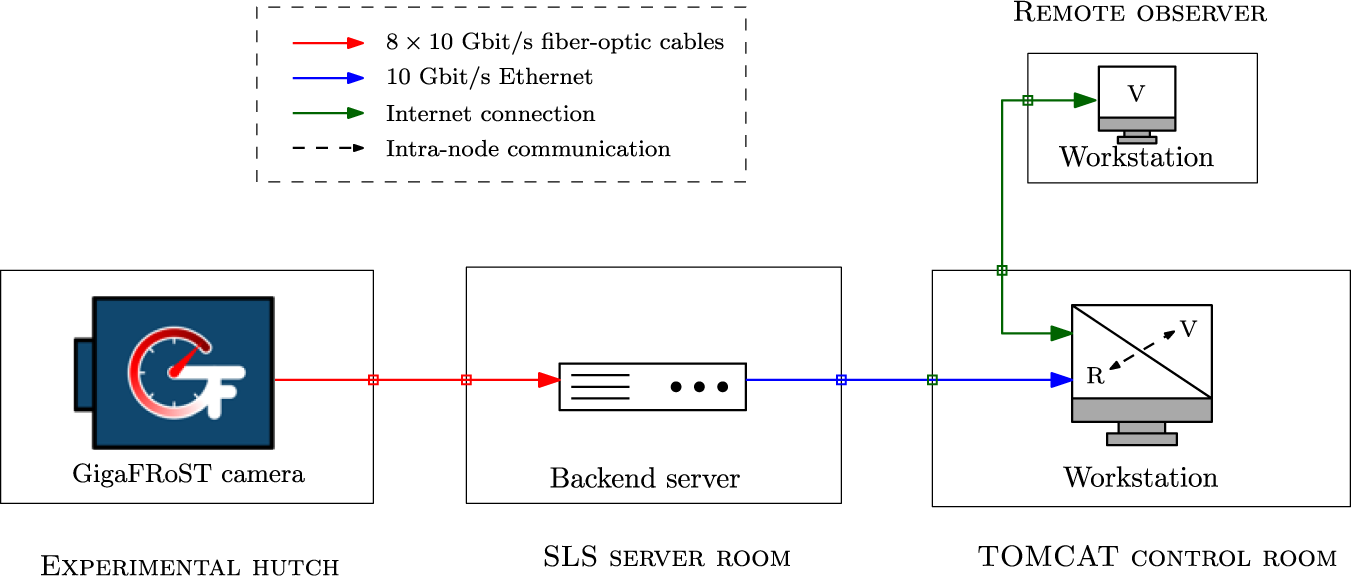

The IT infrastructure used in the real-time reconstruction pipeline. The data from the detector is received by a ring buffer on the backend server. This data is then streamed to the reconstruction software (R) currently running on a single workstation in the control room. The communication between the visualisation software (V) and the reconstruction software now happens within this single workstation.
