Figure 2
From: Transcriptomic responses in mouse blood during the first week after in vivo gamma irradiation

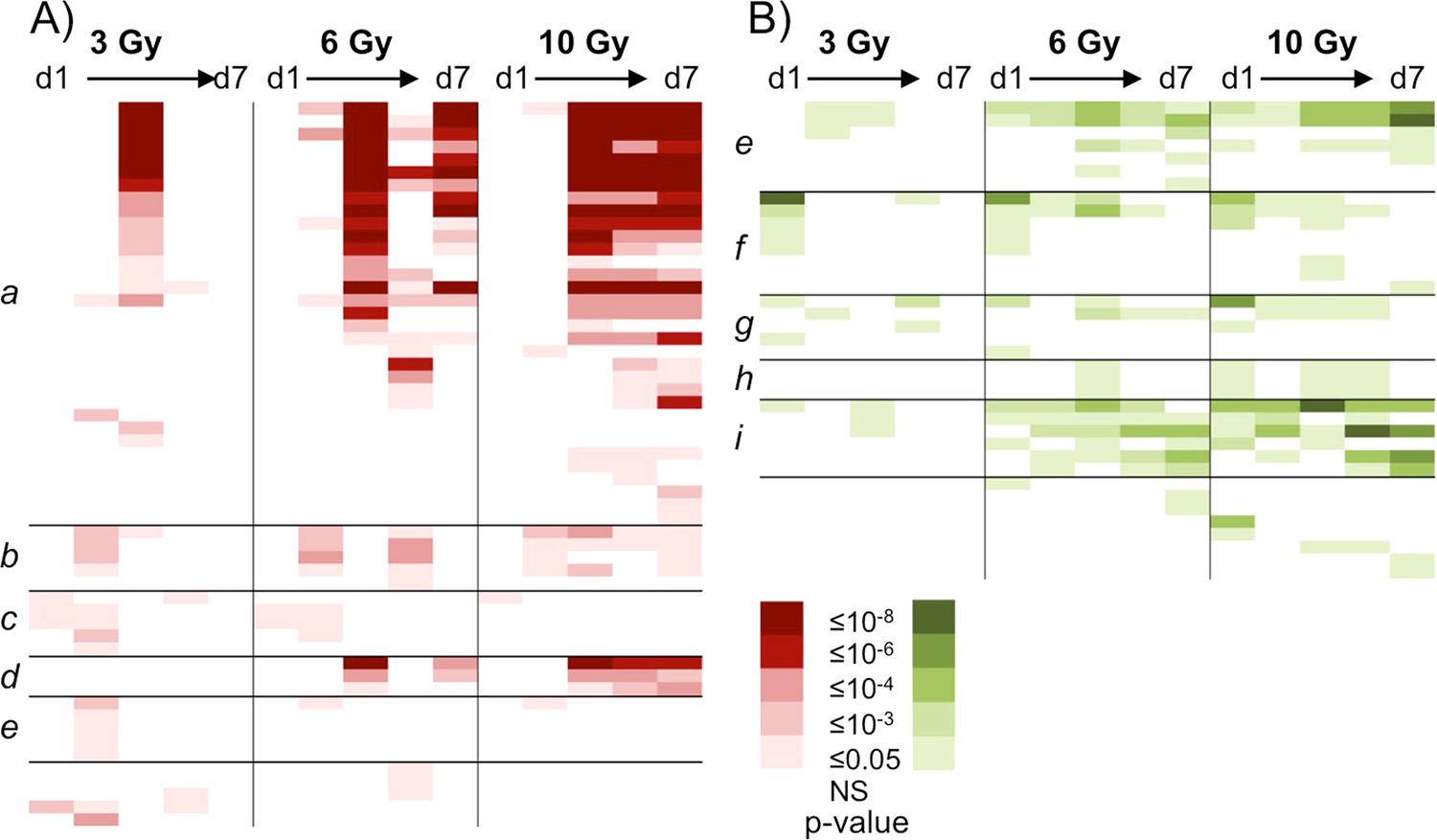

Gene Ontology analysis of differentially expressed genes. PANTHER was used to identify significantly over-represented GO-Slim biological processes (rows) among (A) up- or (B) down-regulated genes at 1, 2, 3, 5, or 7 days after exposure to 3, 6, or 10 Gy gamma radiation. Each column represents a dose and time combination. To illustrate the patterns of response among biological processes, the cells are colour coded by p-value as shown in the key. Related processes have been grouped together in the marked regions: (a) metabolic processes, (b) transport/localization, (c) adhesion/movement, (d) mitochondrial processes, (e) signalling/communication, (f) immune response, (g) cell cycle, (h) cell death, (i) differentiation/development. Details including the process names and p-values are available in Supplementary File 2.
