Figure 3
From: Transcriptomic responses in mouse blood during the first week after in vivo gamma irradiation

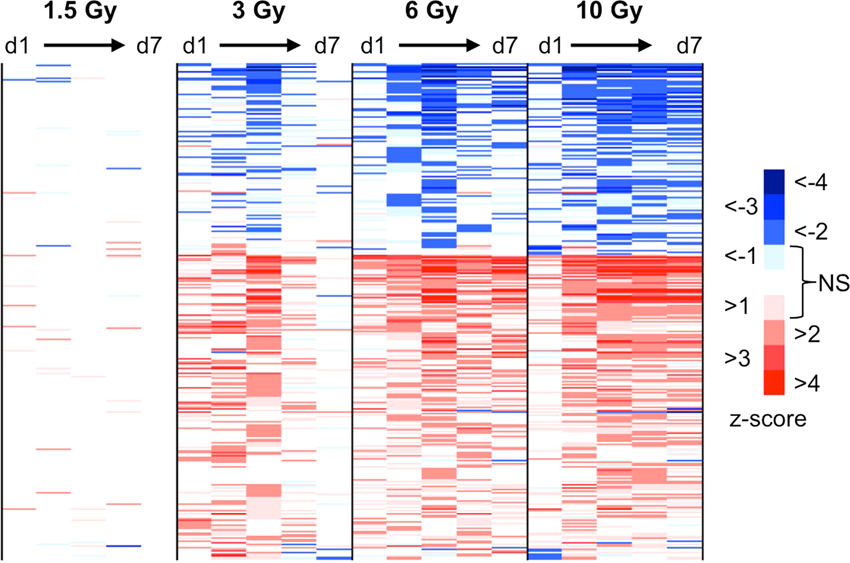

Predicted upstream regulator activation and inhibition. Significant gene expression fold-changes relative to time-matched controls were analysed separately for each dose and time combination (columns) using Ingenuity Pathway Analysis (IPA) to predict changes in upstream regulatory factors (rows). Results are coloured by z-score according to the key. Z-scores between 1 and 2 or −1 and −2 are also coloured to help visualize trends, but these are not deemed significant (NS). The annotated list of regulators with significant prediction of activation (red) or inhibition (blue) and their associated z-scores is available in Supplementary File 2.
