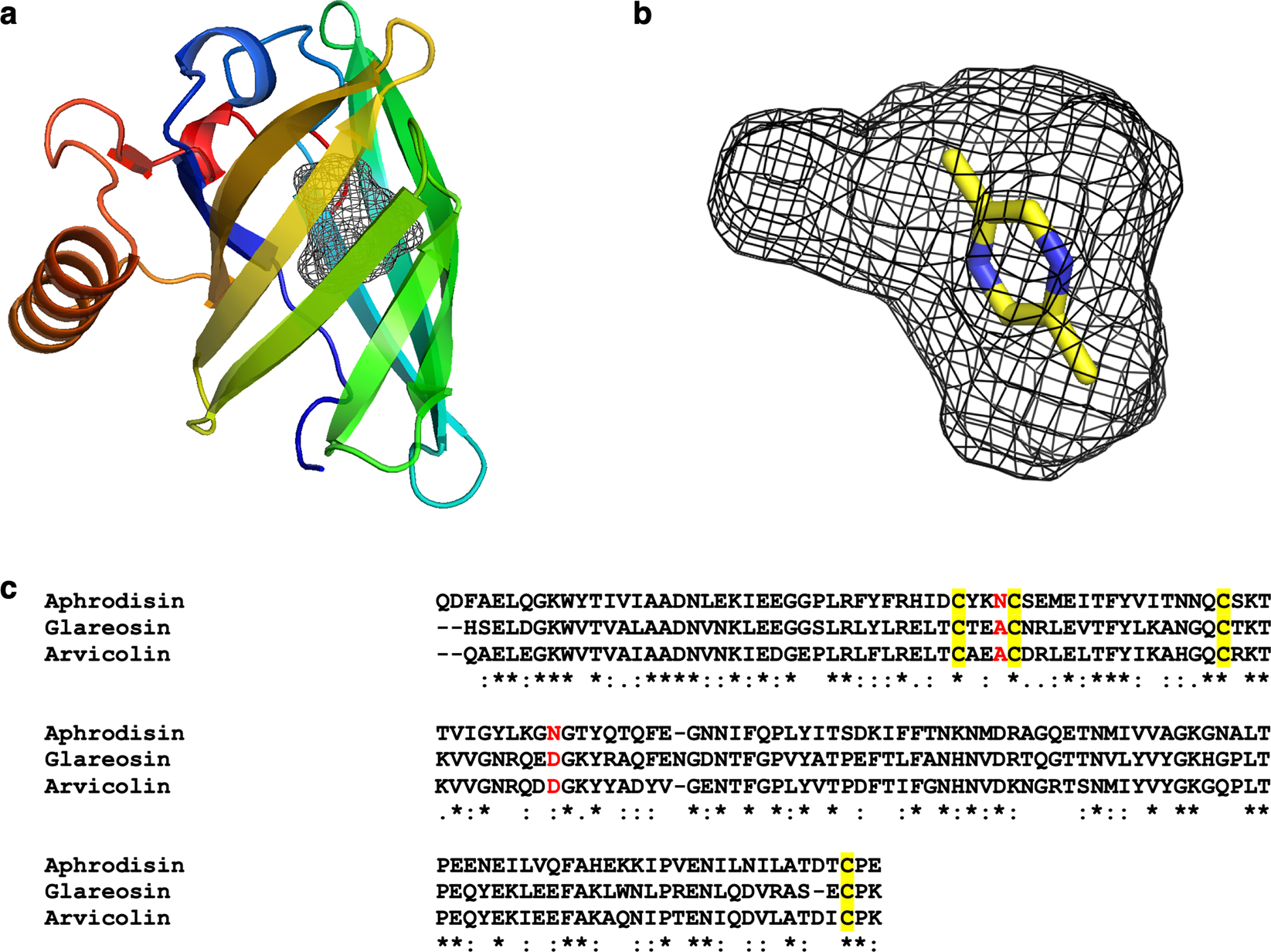

3-D structure of arvicolin predicted by homology modelling. (a) The model is coloured blue to red from N-terminus to C-terminus and is represented by secondary structure elements. The cavity inside the β-barrel is represented by black mesh. The figure was generated using PyMOL software (The PyMOL Molecular Graphics System, Version 1.8.0.0 Schrödinger, LLC, https://pymol.org/2/), (b) Structure of 2,5-dimethyl pyrazine docked in arvicolin cavity, (c) CLUSTAL O (1.2.4) multiple sequence alignment of aphrodisin (sp|P09465.3|APHR_CRICR), glareosin12, and arvicolin (GenBank# QEY02203.1). Conserved cysteines are underlined in yellow, glycosylation sites of aphrodisin are red bold (N, Asn) and corresponding amino acids (A, Ala, and D, Asp) in glareosin and arvicolin are in red.
