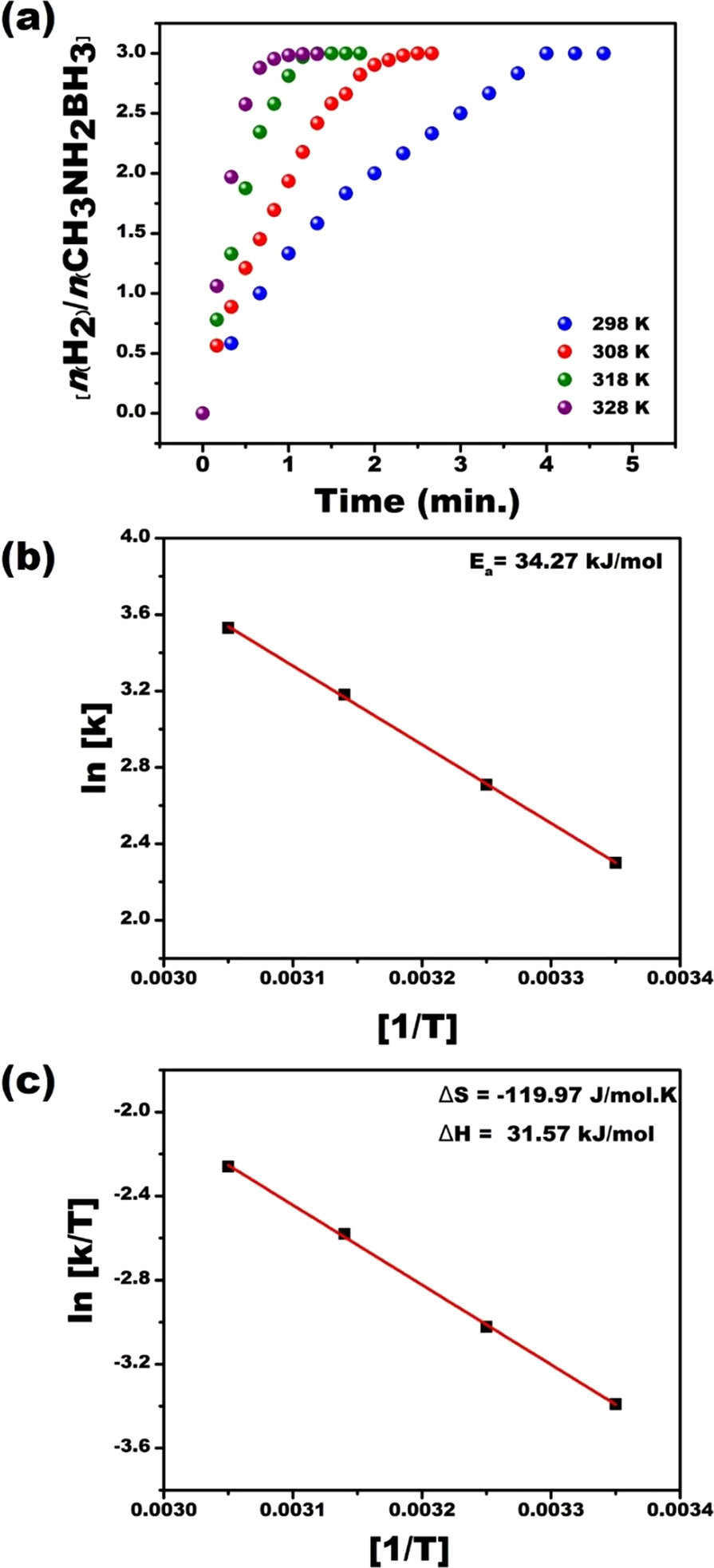

Figure 7

(a) Plot of nH₂/CH₃NH₂BH₃ versus time for MeAB (50 mM in 5 mL H₂O) beginning with Pt@PPy-MWCNT NPs ([Pt@PPy-MWCNT NPs] = 0.57 mM in 5 mL H₂O) at varied temperatures within 298–328 K range, (b) Arrhenius, and (c) Eyring plots of the reactions.
