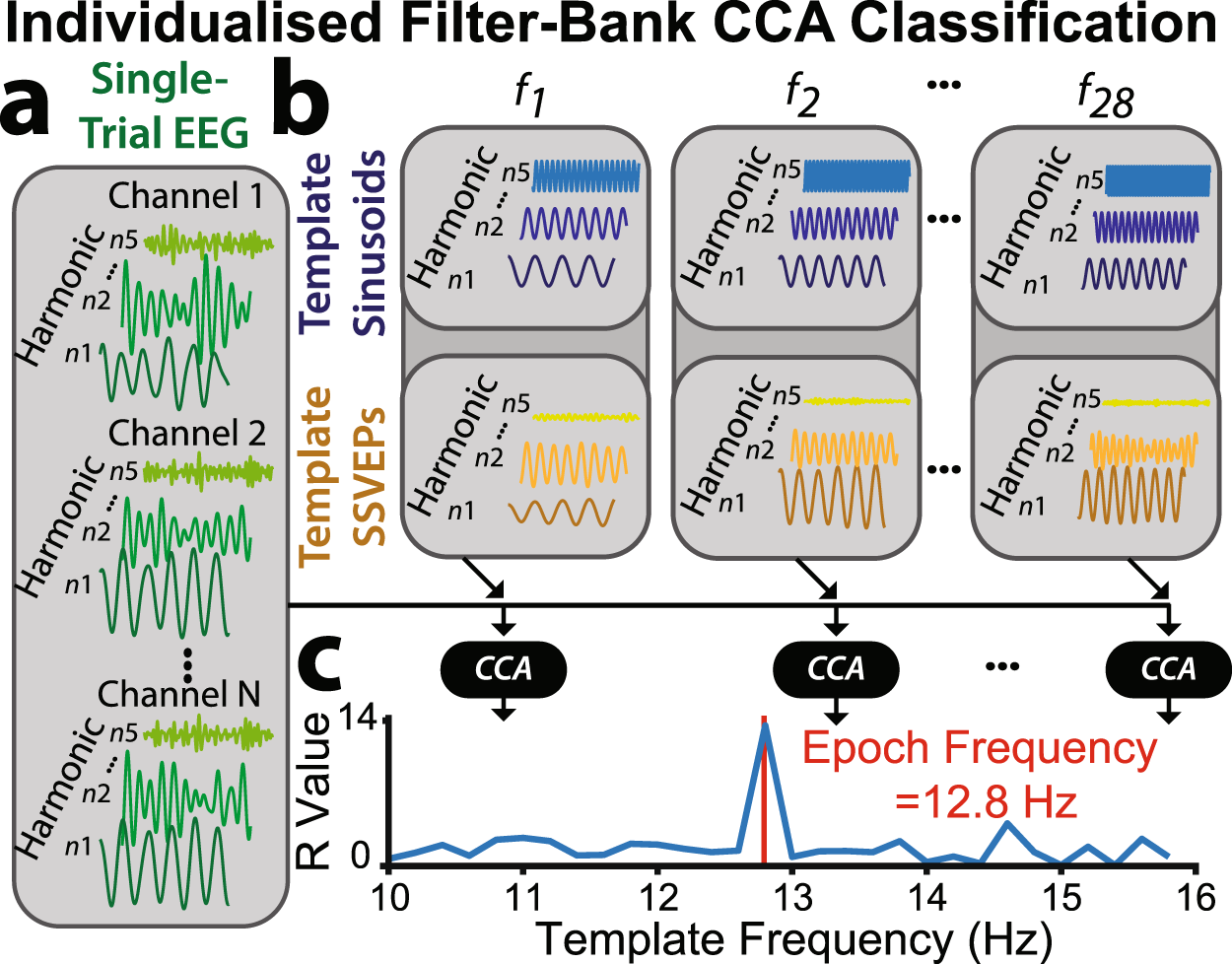

Figure 8
Individualised filter-bank CCA classification. (a) Following each flicker period, the corresponding single-trial EEG from the occipitoparietal electrodes with the highest SSVEP training amplitudes were bandpass filtered to the first five harmonic ranges. (b) Training resulted in template SSVEPs and sinusoids, reflecting mean signals for each of the 28 flicker frequencies and first five harmonics (see Methods: Template Training for a complete description). (c) Filter-bank CCA evaluated the overall pattern of five weighted correlations between single-trial EEG, template sinusoids and template SSVEPs. The filter bank CCA produced a final outcome feature for each frequency (Rfi), representing the degree of similarity between the single-trial EEG and templates. The frequency with the highest similarity was classified as the selected frequency/key.
