Figure 6

From: Equivalent circuit parameters of planar transmission lines with spoof surface plasmon polaritons and its application in high density circuits

Figure 6The alt text for this image may have been generated using AI.

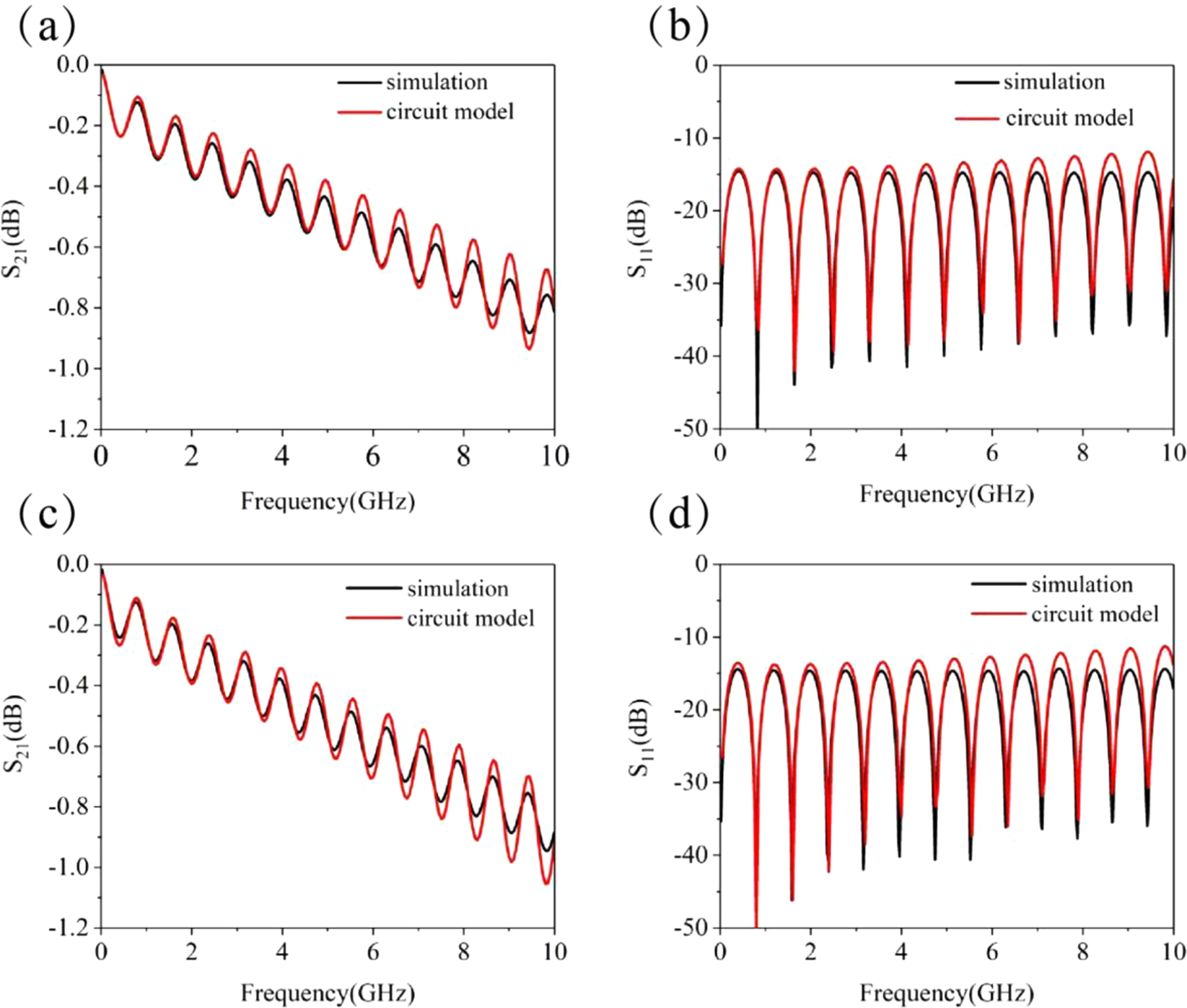

S-parameters of two structured microstrip lines with d = 1.0 mm characterized by the full wave simulation and equivalent circuit model. (a)S21 for the BSPC structure, (b) S11 for the BSPC structure, (c) S21 for the USPC structure, and (d) S11 for the USPC structure.
