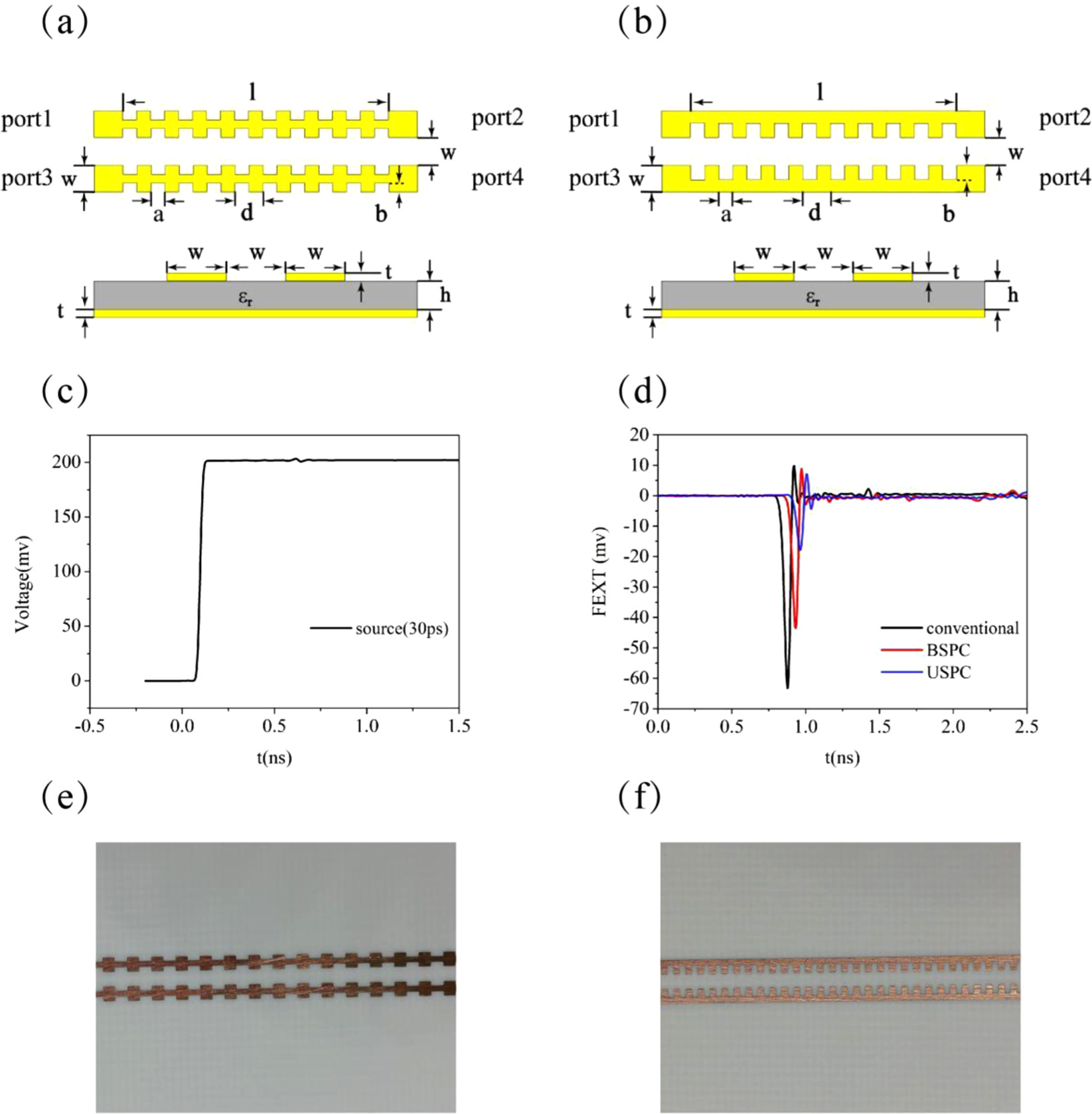

Figure 8

Mutual coupling effect between two parallel microstrip lines with (a) BSPCs or (b) USPCs. (c) The input signal at port 1. (d) The measured FEXT. (e) Optical image of the coupled BSPC microstrip lines. (f) Optical image of the coupled USPC microstrip lines.
