Figure 8

From: Phylogeographic patterns of intertidal arthropods (Acari, Oribatida) from southern Japanese islands reflect paleoclimatic events

Figure 8The alternative text for this image may have been generated using AI.

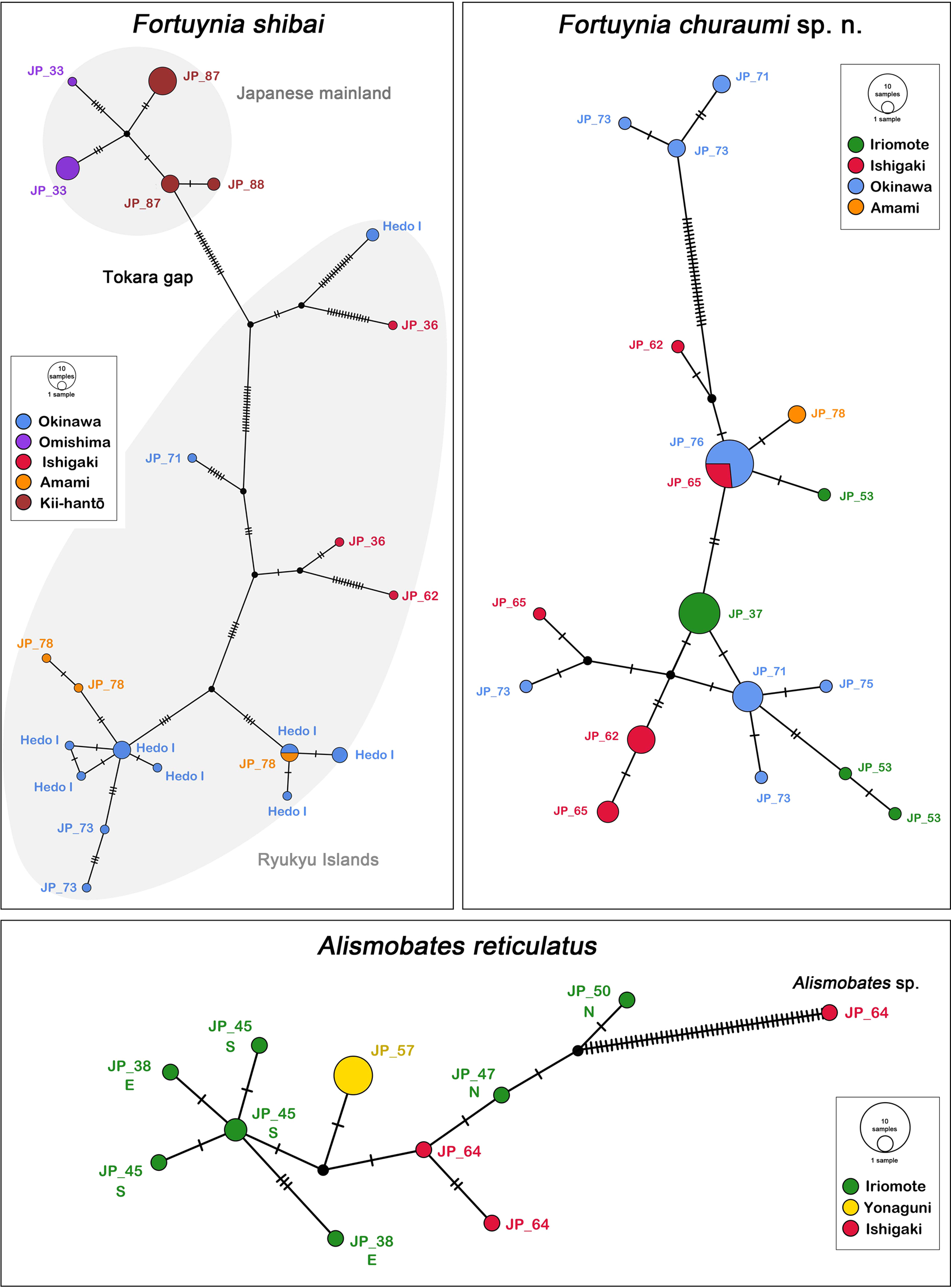

TCS haplotype networks based on COI sequences for three Japanese fortuyniid species. Each circle corresponds to one haplotype and its size is proportional to its frequency, the number of mutations is indicated as hatch marks. Small black circles represent intermediate haplotypes not present in the dataset. Codes refer to sample locations as given in the material and method section; different islands are given in different colors and letters E, N, S (East, North, South) refer to geographic position of location on Iriomote-jima.
