Figure 2

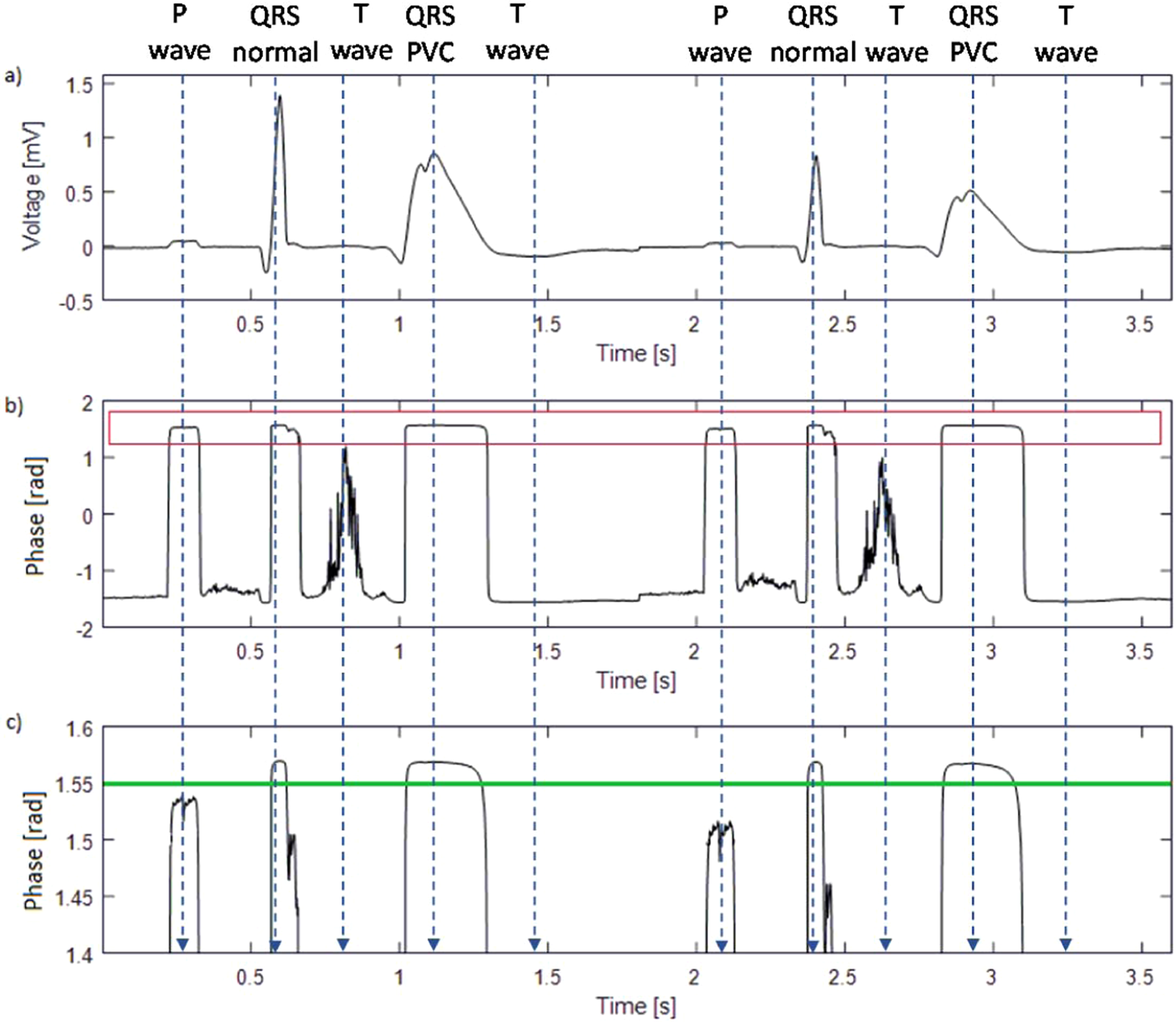

An example of (a) an original ECG signal; (b) phase signal φ(n); (c) detail of the top part of the phase signal (illustrated by red box in (b)), the green line represents the threshold for QRS detection.
Figure 2 | Scientific Reports
An example of (a) an original ECG signal; (b) phase signal φ(n); (c) detail of the top part of the phase signal (illustrated by red box in (b)), the green line represents the threshold for QRS detection.
