Figure 3
From: Ultrastructural modeling of small angle scattering from photosynthetic membranes

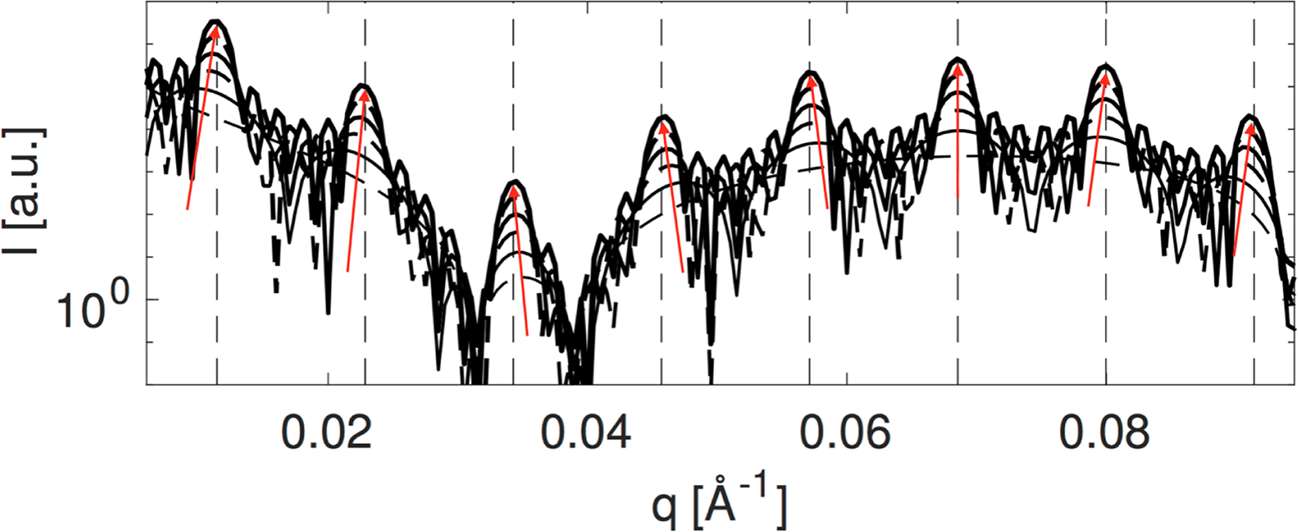

Direct comparison of theoretical scattering patterns corresponding to Supplementary Fig. 1. As the number of unit cells increases from 1 to 6 (plotted with increasing intensity) the manifestation of the Bragg peaks becomes increasingly pronounced. The theoretical position of the Bragg peaks are indicated by dashed lines. The red arrows indicate the curvature of the form factor governing the shift direction of the peaks for few unit cells.
