Figure 4

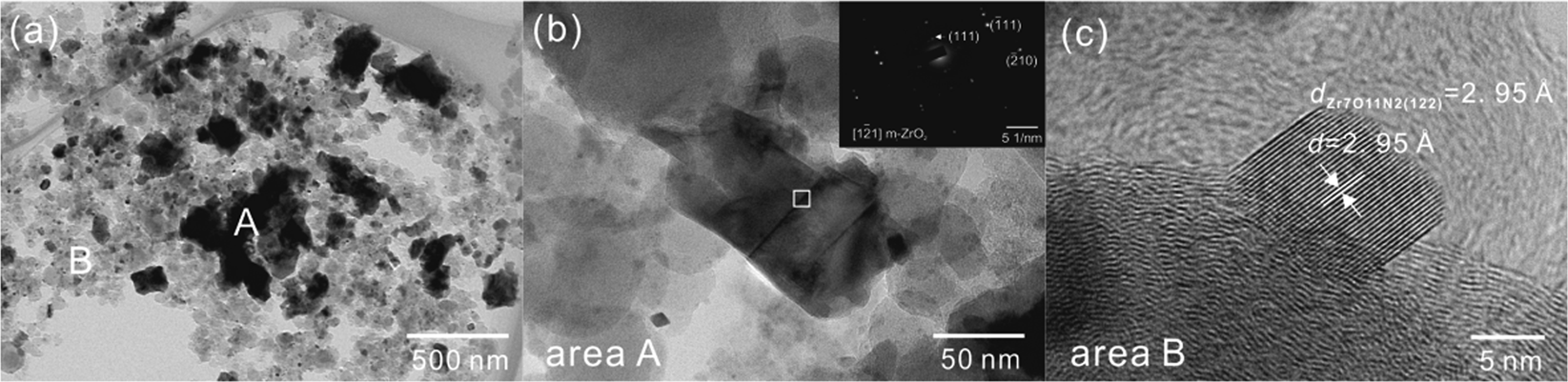

Microscopic images of under-reacted product obtained at 1350 °C for 5 h with C/Zr = 2. (a) Overview image; (b) morphology of angular-shaped particle and associated SAED pattern, corresponding to area A in (a); (c) HRTEM image of nanocrystalline in this product, corresponding to area B in (a).
