Figure 10

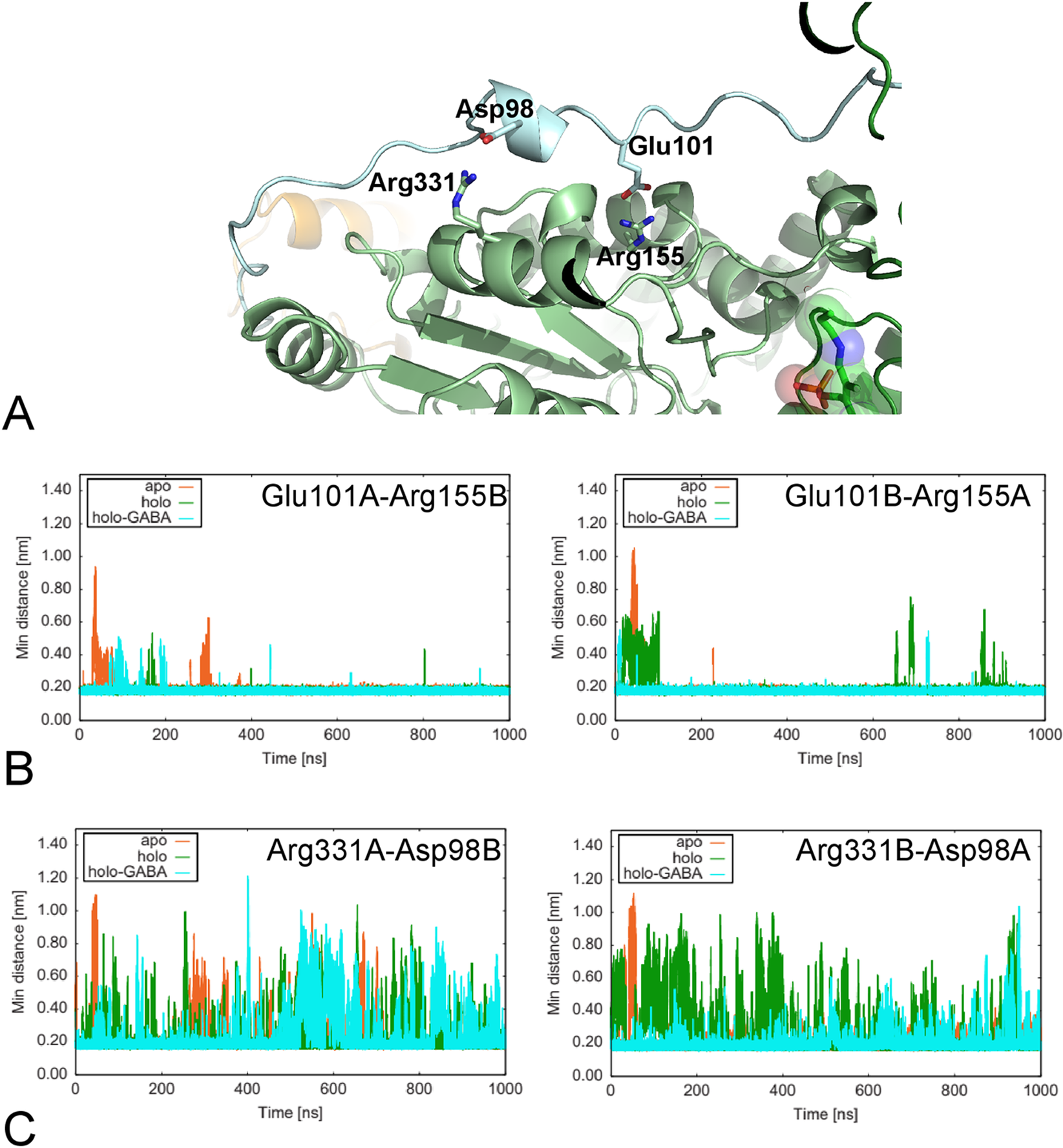

Linker. (A) Salt bridges at the interface between the chain A Linker and the chain B AAT domain. Colors are as in Fig. 1. Residues involved in the discussed salt bridges are depicted with stick models and labelled. (B) Minimum distance between Glu101A and Arg155B (left panel) and vice versa (right panel). (C) Minimum distance between Arg331A and Asp98B (left) and vice versa (right). Figure in panel A has been drawn with the software open-source PyMOL v. 1.8.4.0 (https://pymol.org/)55. (B,C) Plots have been created with the software gnuplot v. 4.4 (http://www.gnuplot.info/).
