Figure 2

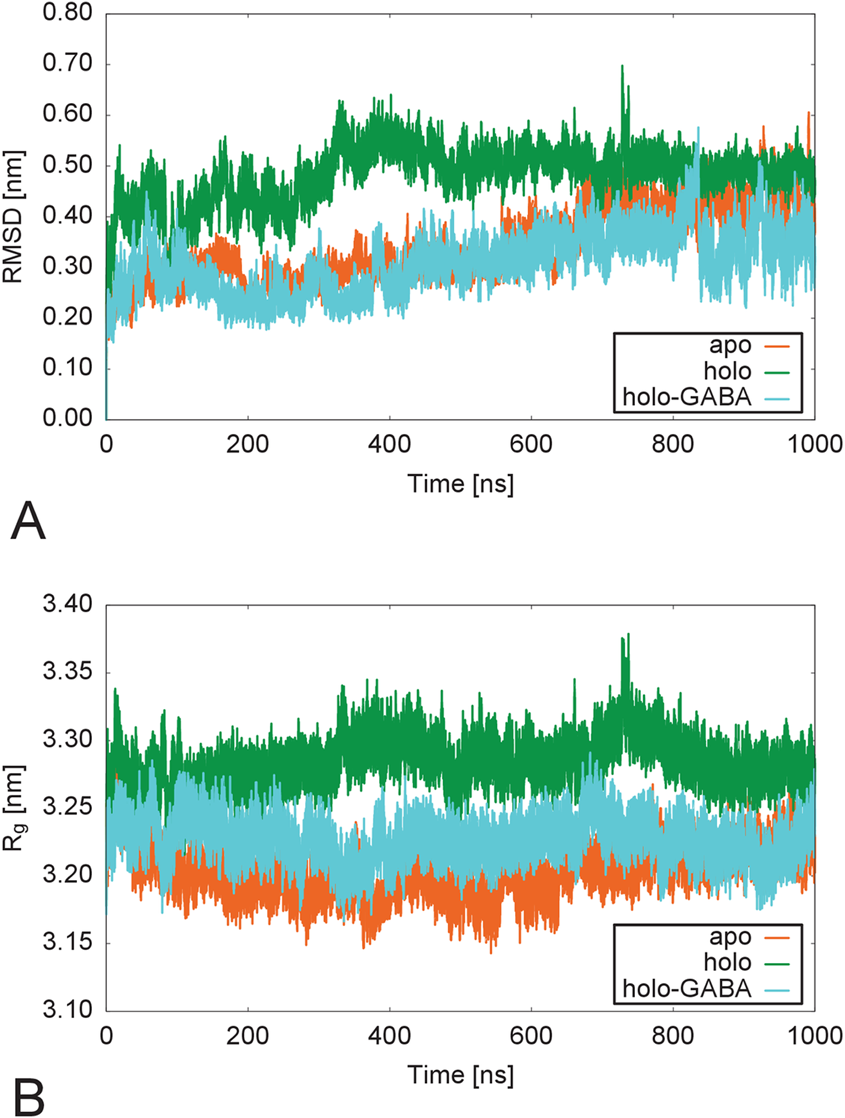

Backbone RMSD and Radius of gyration. Comparison of (A) the backbone RMSDs and (B) Radii of gyration (Rg) calculated over the 1 μs simulation for the three GabR form dimers. Color code is reported in the plot inset. Plot created with the software gnuplot v. 4.4 (http://www.gnuplot.info/).
