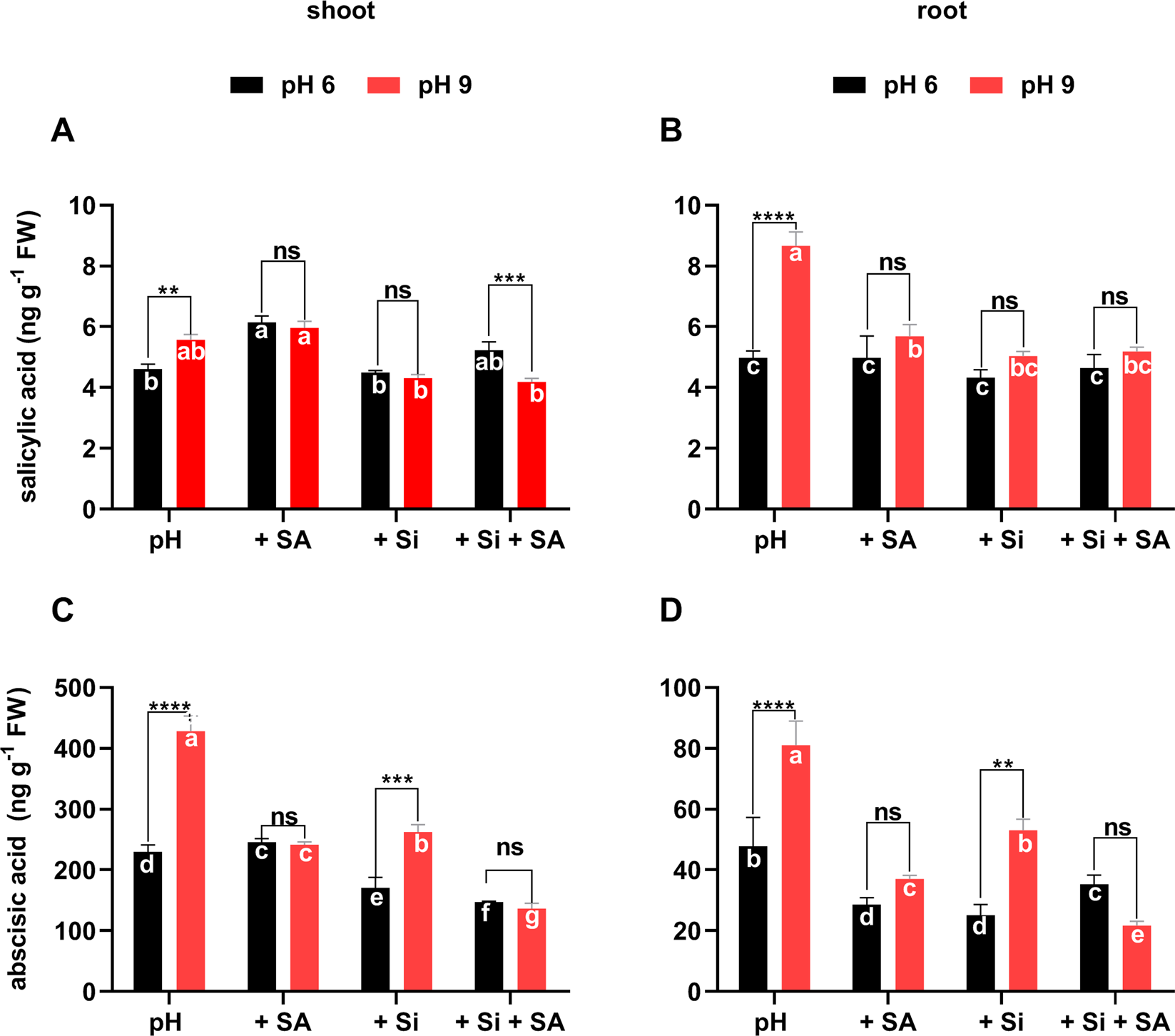

Figure 4
From: Silicon and salicylic acid confer high-pH stress tolerance in tomato seedlings
Measurements of the endogenous shoot and root (A,B) salicylic acid and (C,D) abscisic acid levels in tomato plants grown under pH 6.0 and alkaline stress conditions with/without exogenously applied Si, SA and Si + SA. *,**, *** and **** indicate a significant difference between treatments at a given pH where P < 0.05, 0.01 and 0.001, respectively, and “ns” indicates non-significant differences. Different letter (s) indicate a significant difference (P < 0.05) among all treatments by DMRT test.
