Figure 2
From: Corrosion and Thermal Stability of CrMnFeNi High Entropy Alloy in Molten FLiBe Salt

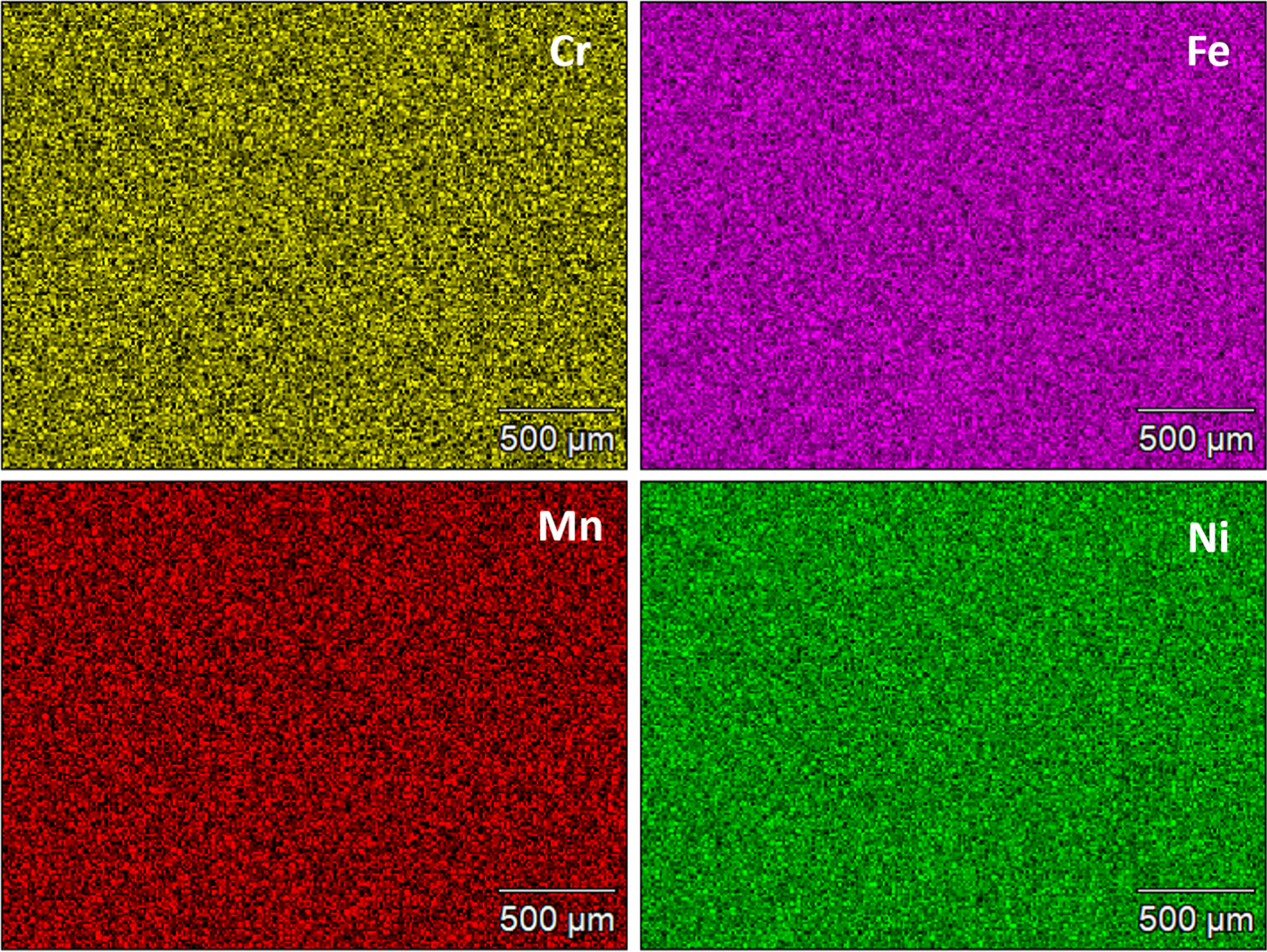

Elemental mapping of elements in the Cr18Mn27Fe27.5Ni27.5 HEA after homogenization at 1200 °C for 48 hours followed by cooling in an inert environment.
